Memory Seat/Mirror/Adjustable Pedals Module C3 - White 12 Way Connector End View
Memory Seat/Mirror/Adjustable Pedals Module C3 - White 12 Way Connector End View

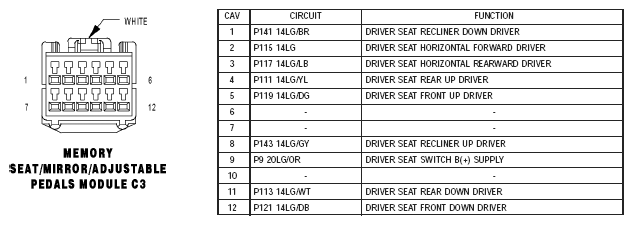

Fig 1: Memory Seat/Mirror/Adjustable Pedals Module C3 - White 12 Way Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
