Left Rear Power Window Switch Connector End View
Left Rear Power Window Switch Connector End View

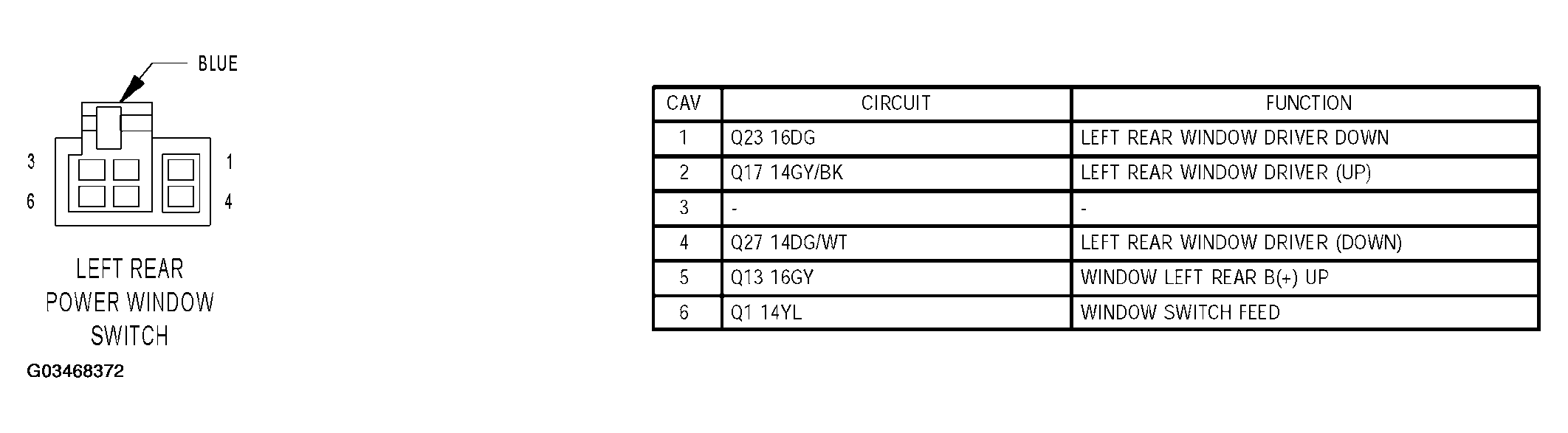

Fig 1: Left Rear Power Window Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
