Body Diagnostic Procedures
›
Schematic Diagram
›
Instrument Cluster
Instrument Cluster

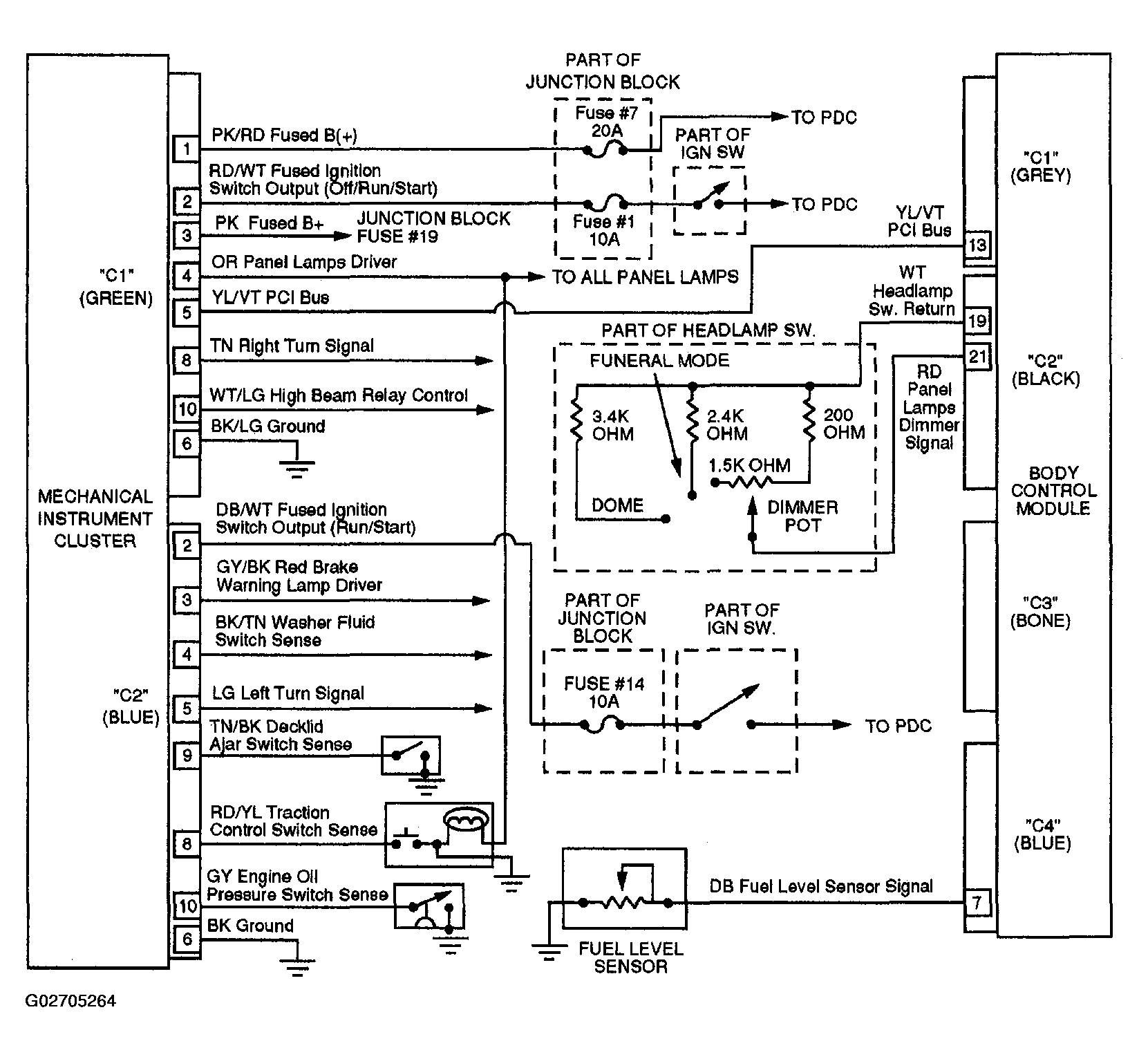

Fig 1: Schematic Diagrams - Instrument Cluster (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

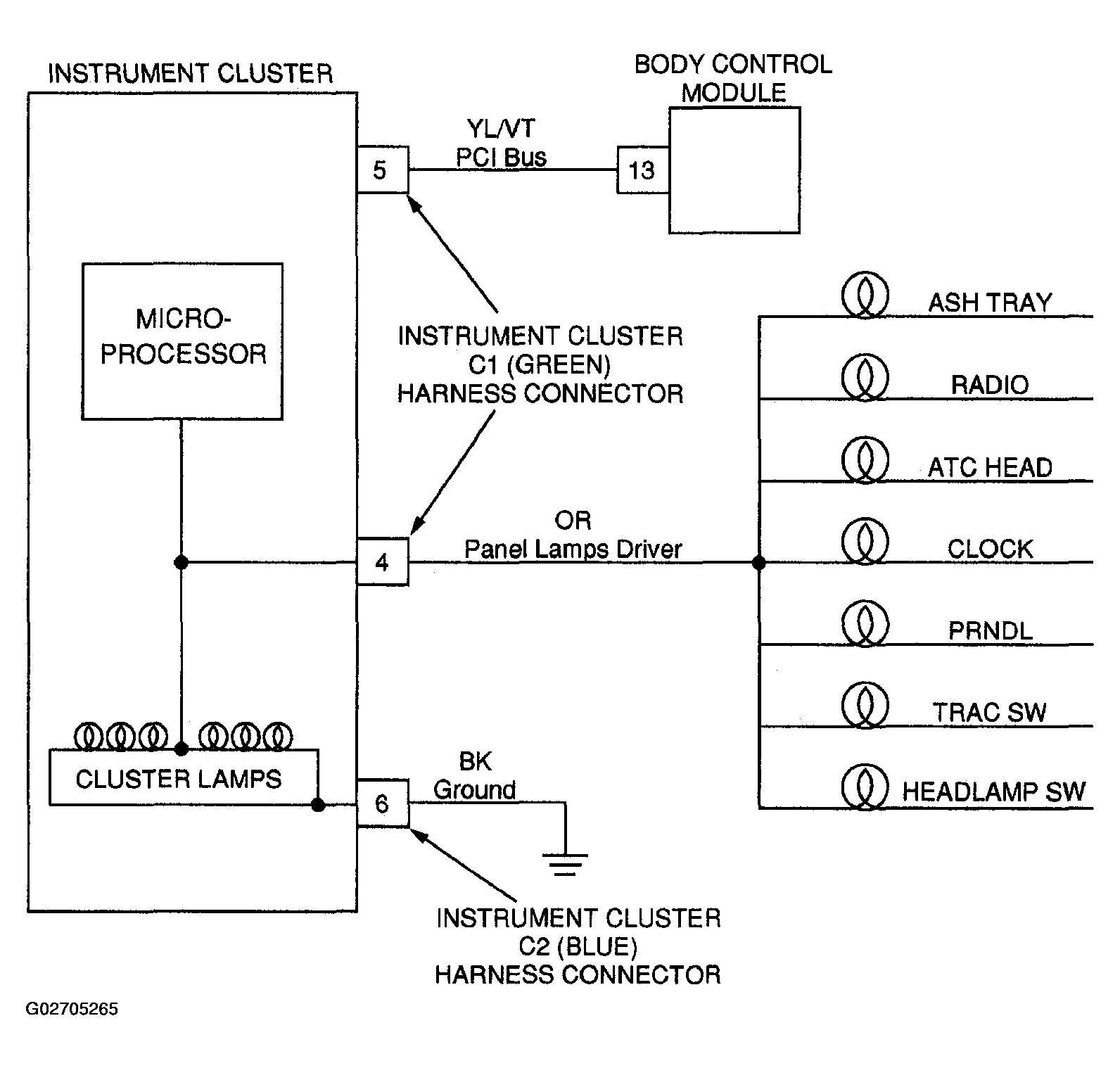

Fig 2: Schematic Diagrams - Instrument Cluster (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
