Audio System: Multiplexer: Removal
- Disconnect and isolate the battery negative cable.
- Remove the radio (Refer to REMOVAL
).

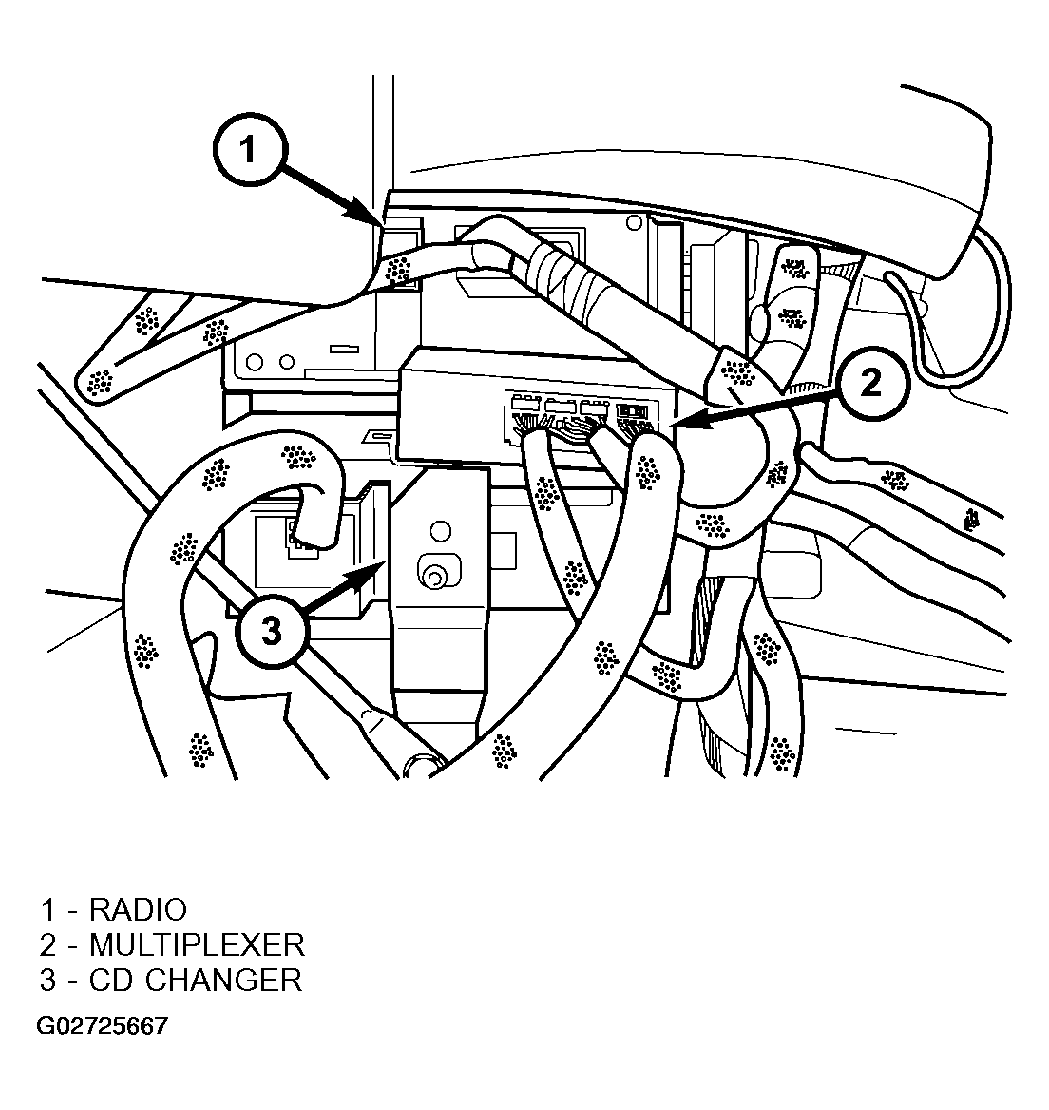

- Remove mounting fasteners (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Disconnect wire harness connectors and remove multiplexer.
