Rear Window Antenna Module: Removal
- Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
- Remove right upper quarter trim panel. (Refer to INTERIOR
).
- Remove the attaching screw from module.

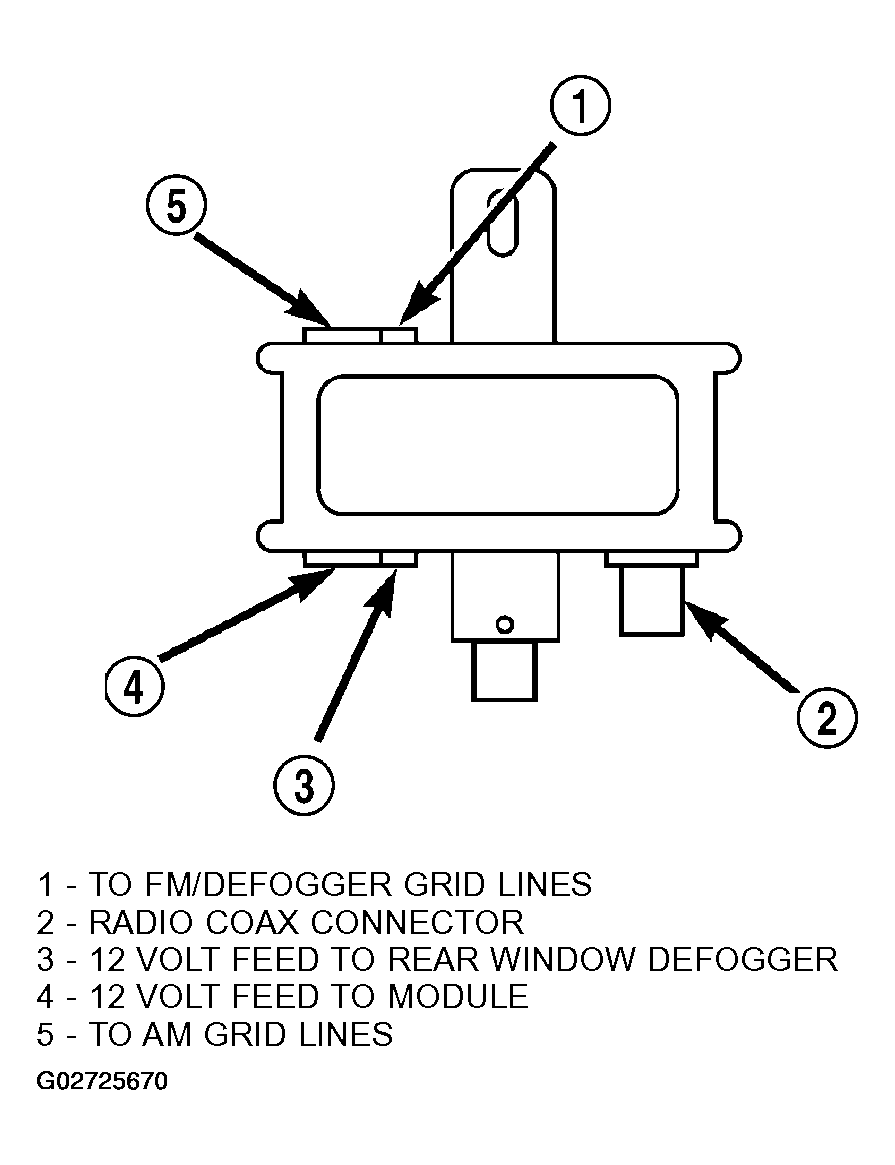

- Disconnect wire connectors and radio antenna coaxial cable (Figure
).
- Remove module from vehicle.
