Driver Heated Seat Switch Connector End View
Driver Heated Seat Switch Connector End View

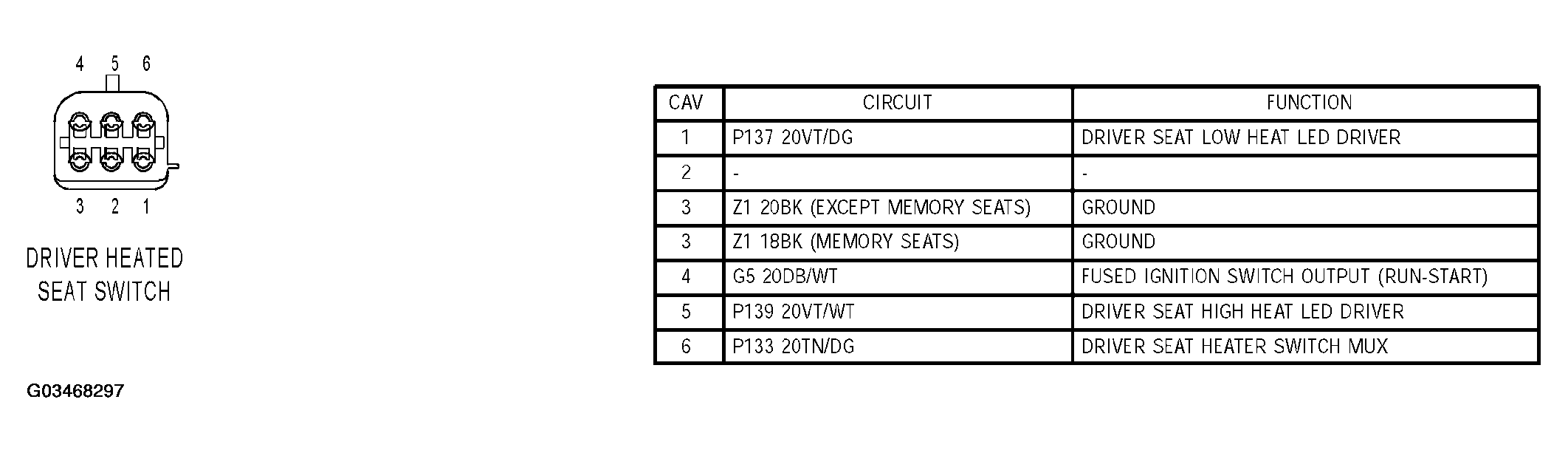

Fig 1: Driver Heated Seat Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
