Instrument Cluster Connector End View (C2)

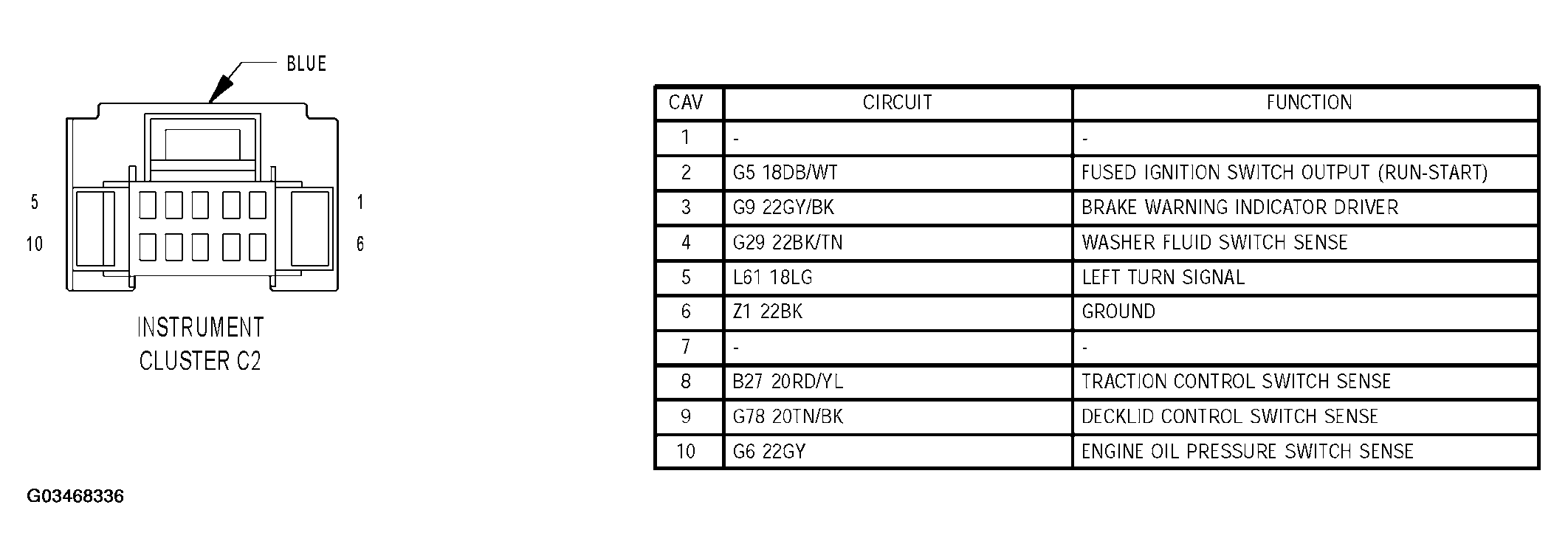

Fig 1: Instrument Cluster Connector End View (C2)
G03468336Courtesy of DAIMLERCHRYSLER CORP.
