Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

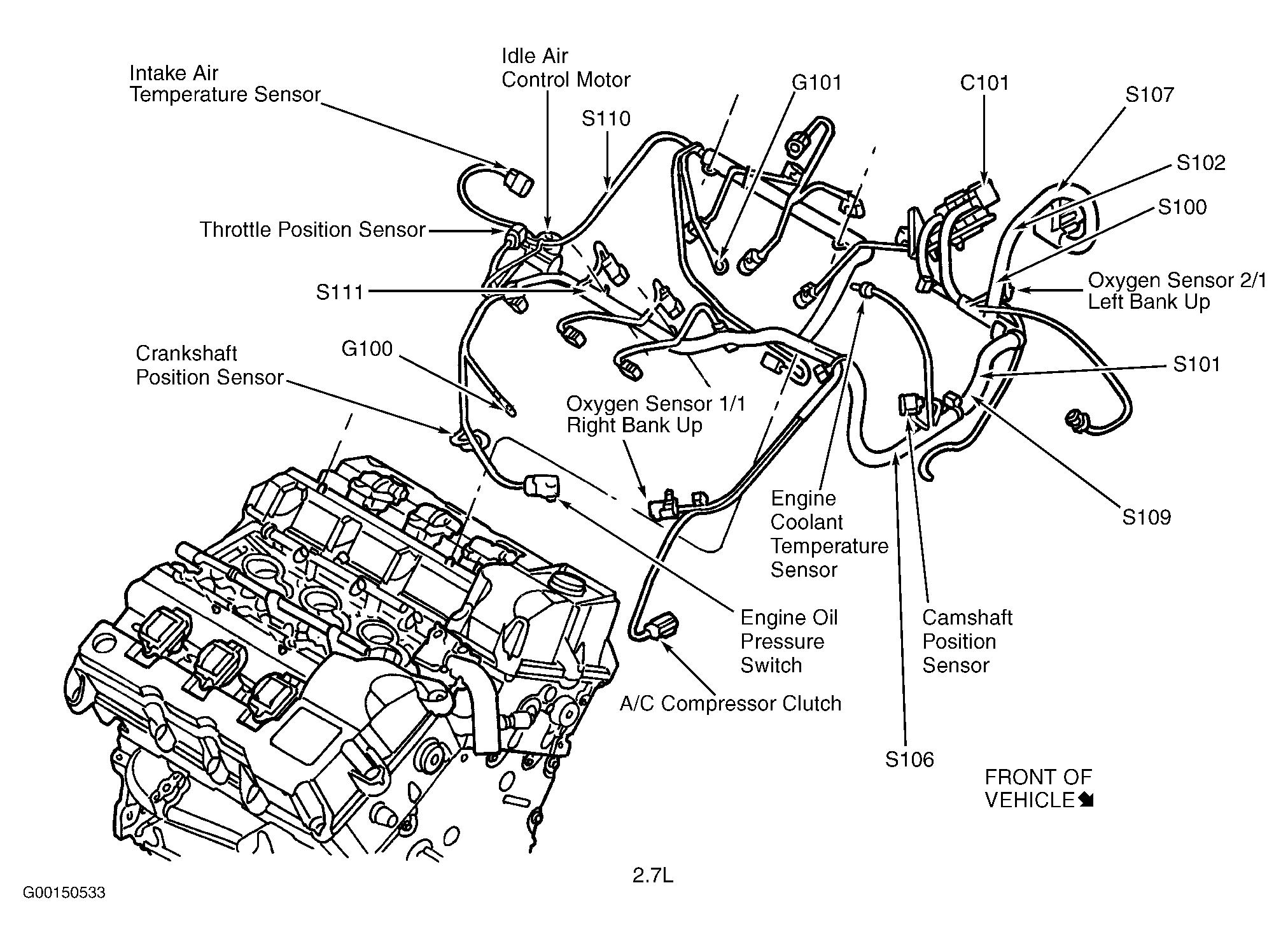

Fig 1: Top Of Engine (2.7L)

Courtesy of DAIMLERCHRYSLER CORP.

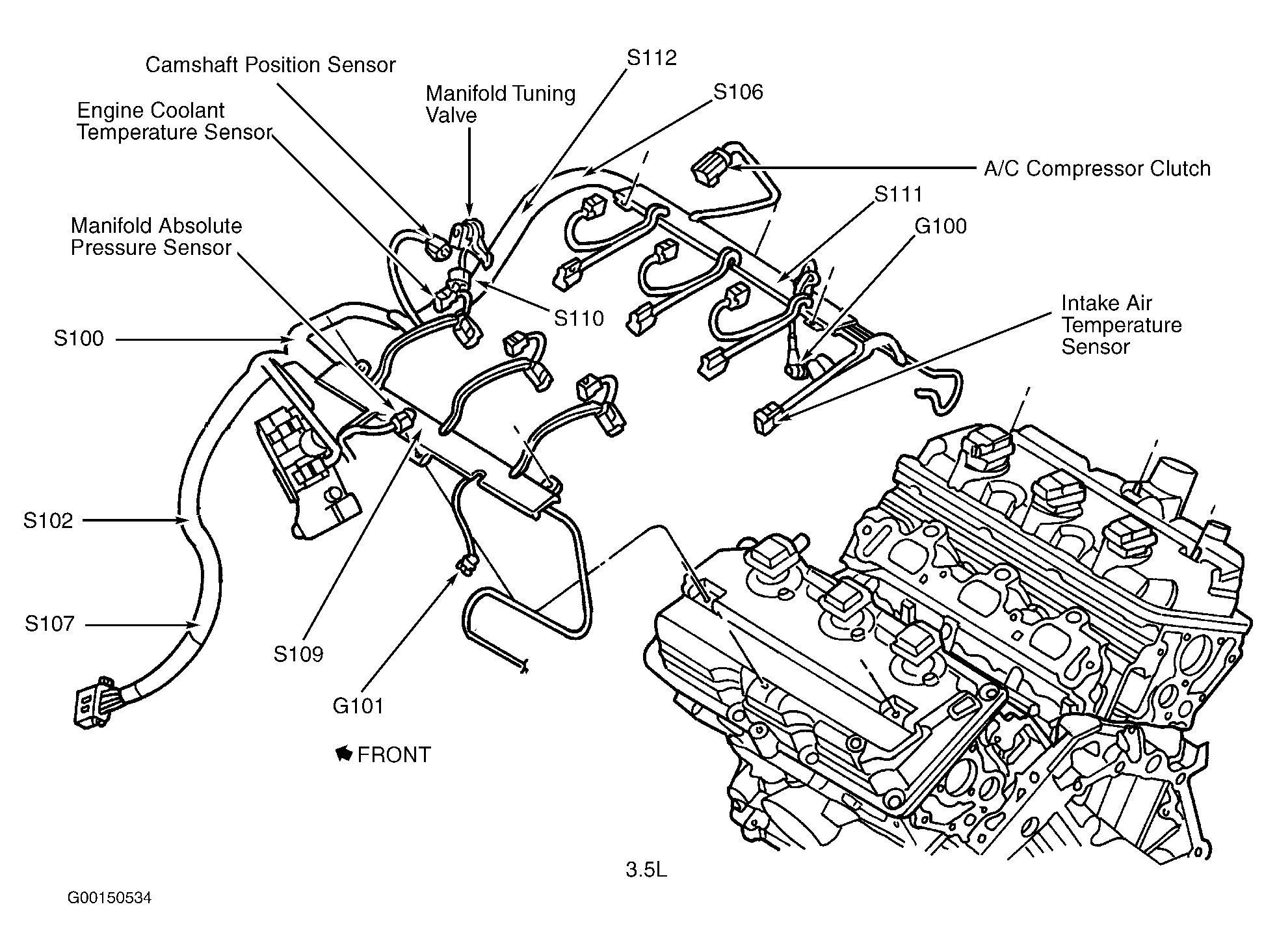

Fig 2: Top Of Engine (3.5L)

Courtesy of DAIMLERCHRYSLER CORP.

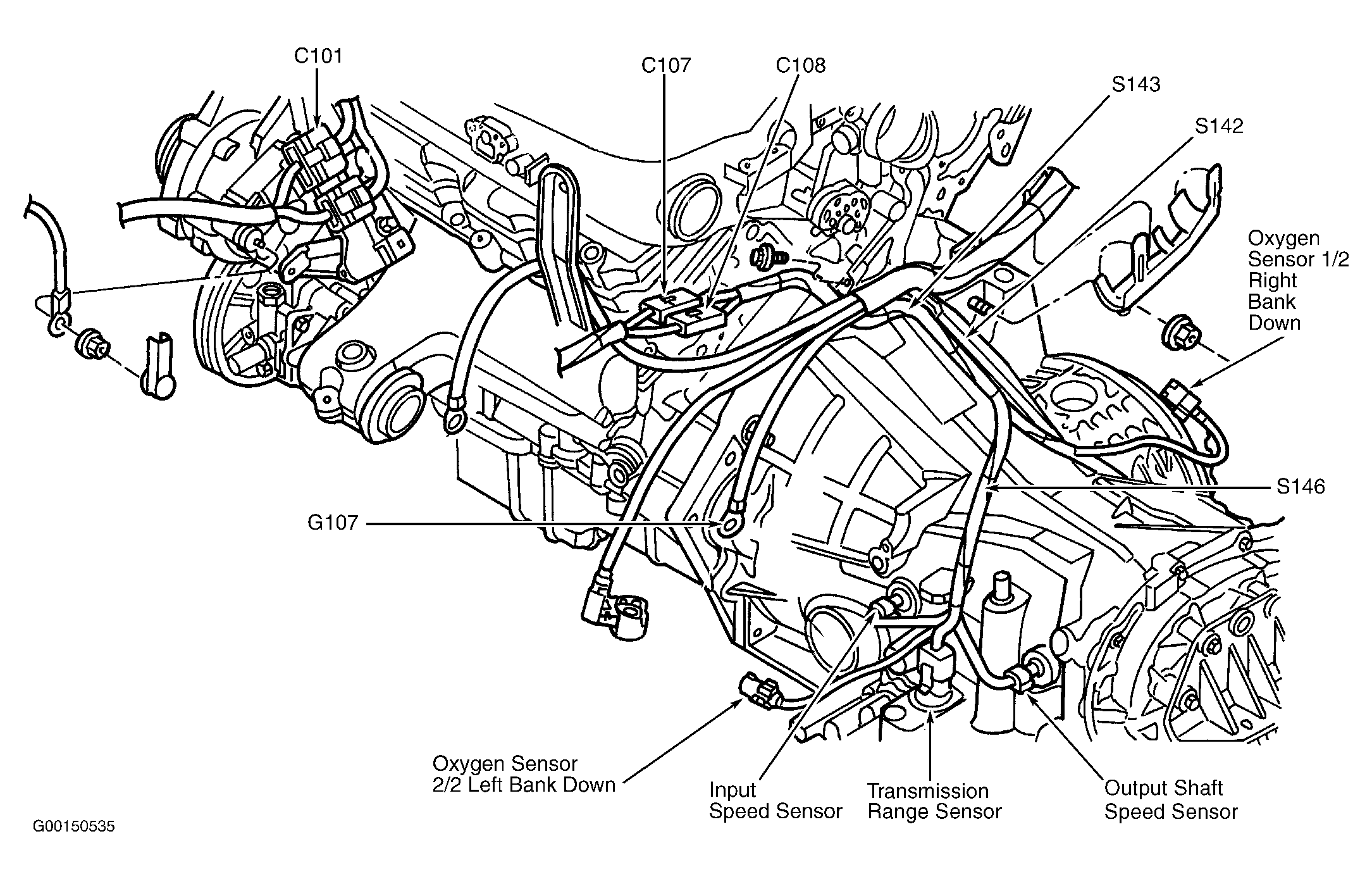

Fig 3: Left Side Of Engine/Transaxle

Courtesy of DAIMLERCHRYSLER CORP.

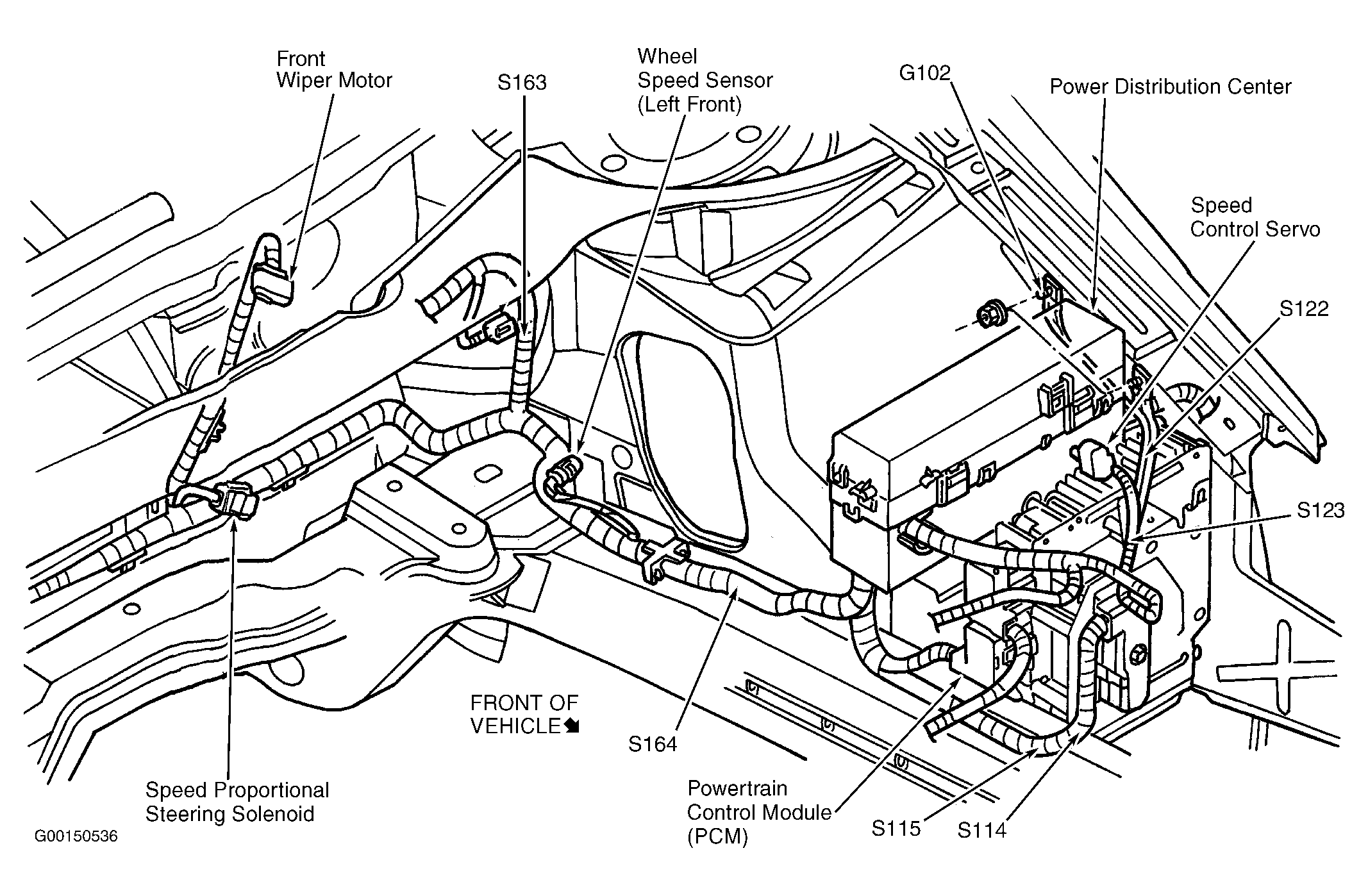

Fig 4: Left Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: HVAC Assembly

Courtesy of DAIMLERCHRYSLER CORP.

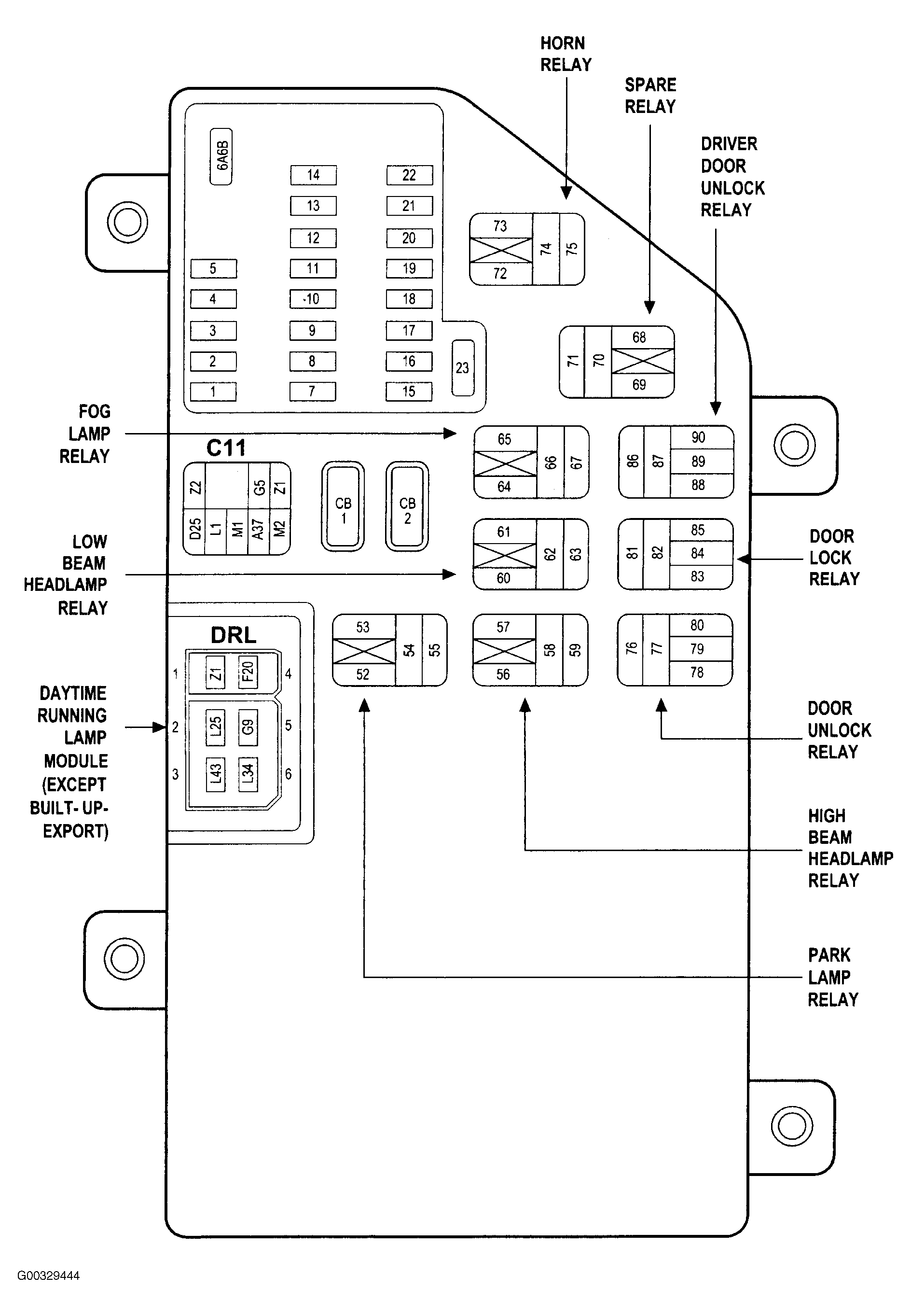

Fig 6: Fuse And Junction Block

Courtesy of DAIMLERCHRYSLER CORP.

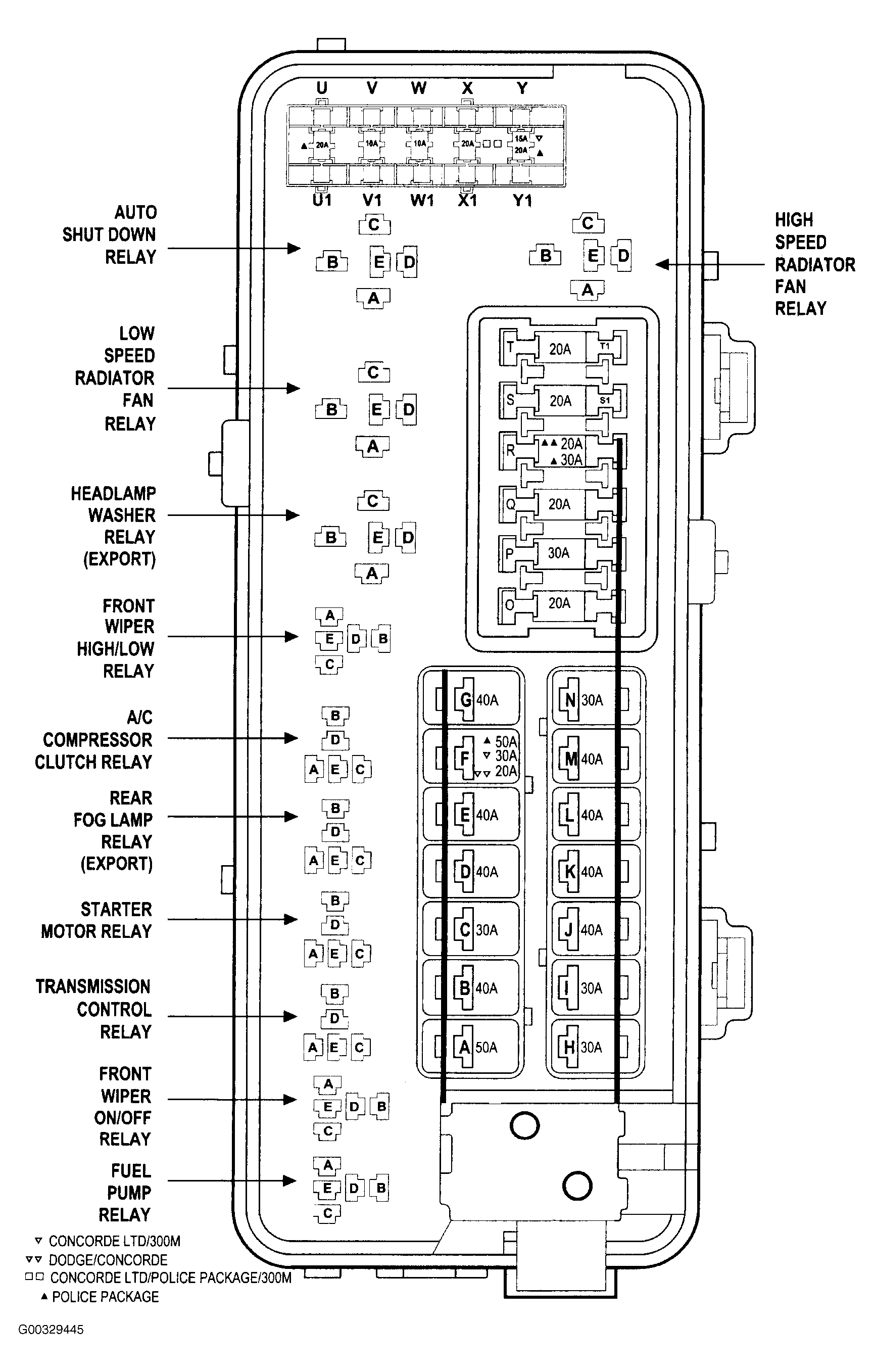

Fig 7: Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.
