Vibration Damper: Installation

  1. Install damper using Special Tools 8179 Screw, with Nut and Thrust Bearing from 6792, and 6792-1 Installer (Fig 1).
    Fig 1: Installing Vibration Damper
    G02709610Courtesy of DAIMLERCHRYSLER CORP.

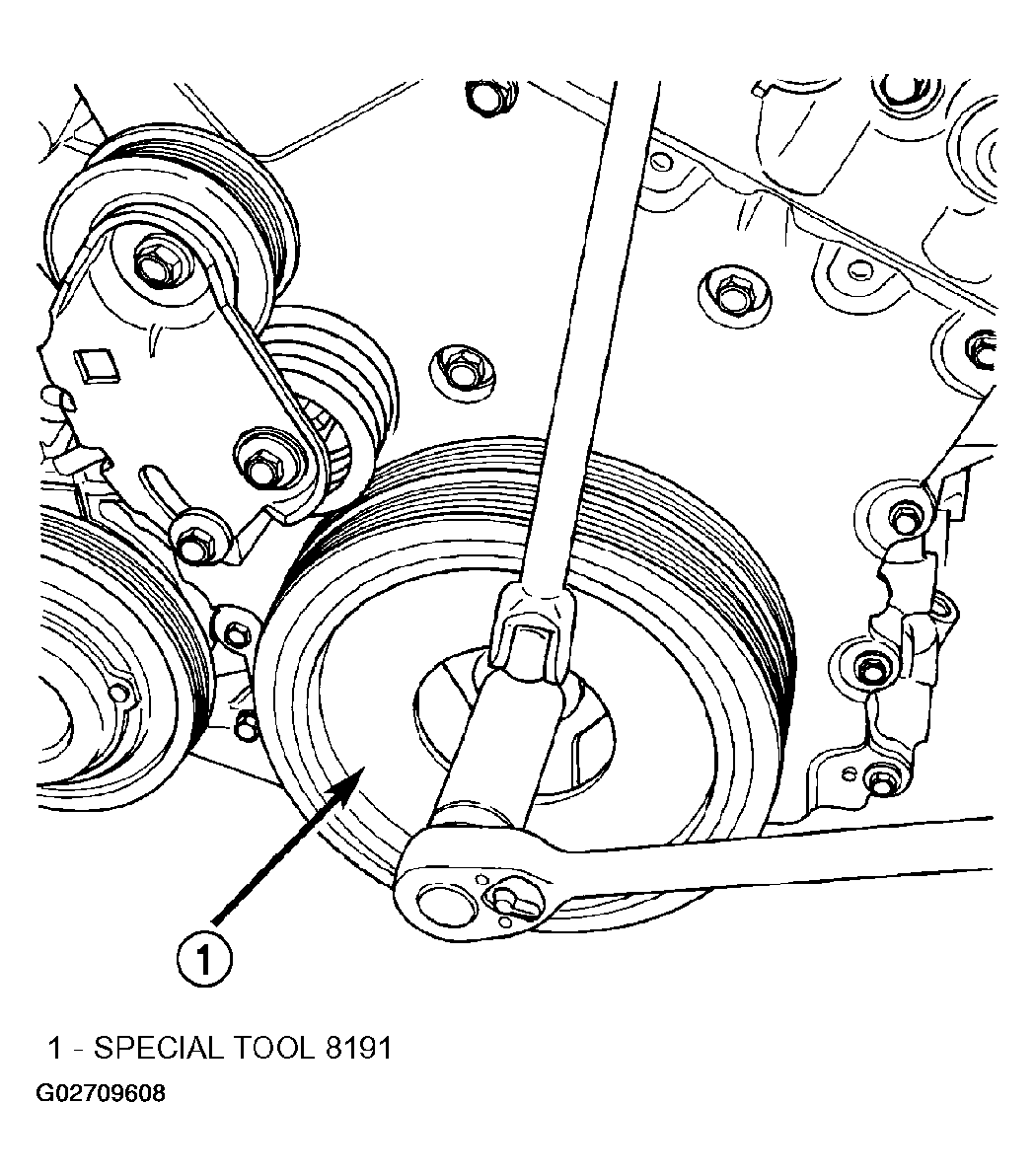

  2. Install damper center bolt. Tighten center bolt while holding the damper with Special Tool 8191 to 170 N.m (125 ft. lbs.) (Figure).
  3. Install accessory drive belts (Refer to ACCESSORY DRIVE ) and radiator fan (Refer to RADIATOR FAN ).
  4. Install upper radiator crossmember.
