Engine Side Inline Connector End View (C101)

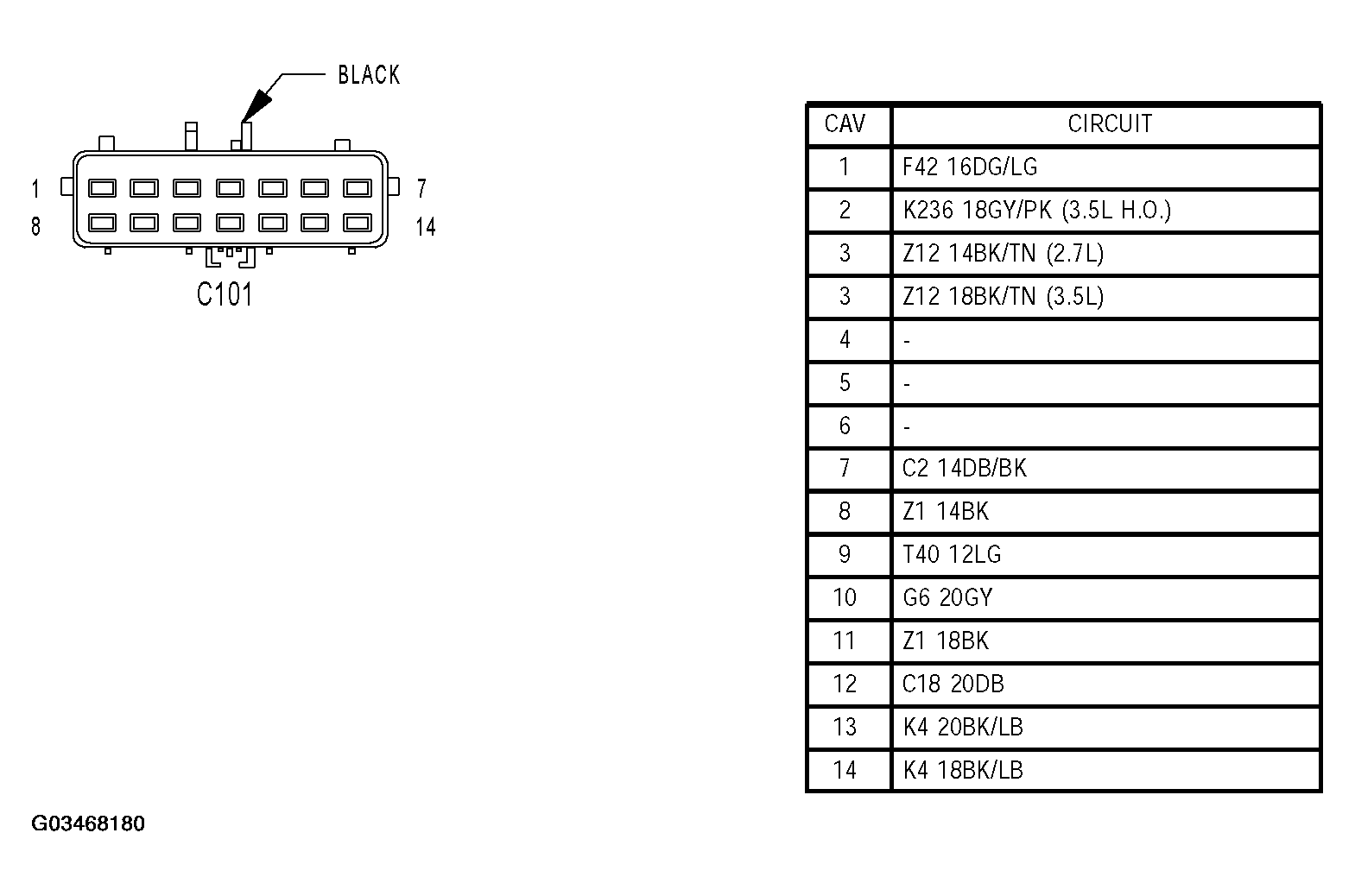

Fig 1: Engine Side Inline Connector End View (C101)
G03468180Courtesy of DAIMLERCHRYSLER CORP.
