Left Bank Up Oxygen Sensor 2/1 Connector End View
Left Bank Up Oxygen Sensor 2/1 Connector End View

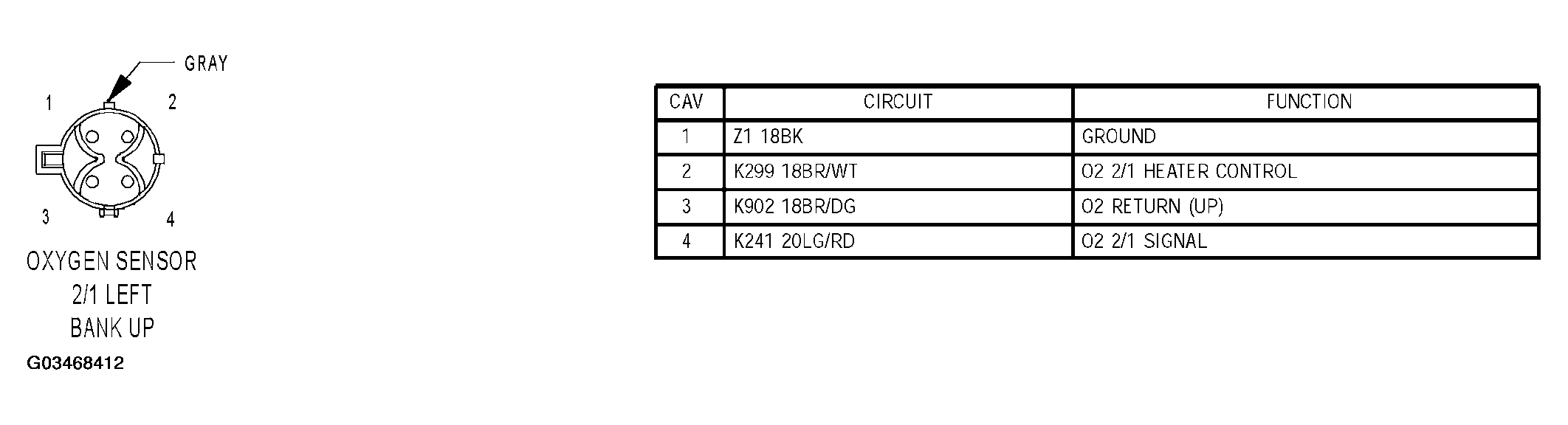

Fig 1: Left Bank Up Oxygen Sensor 2/1 Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
