Left Tail/Stop Lamp 2 (Export) Connector End View
Left Tail/Stop Lamp 2 (Export) Connector End View

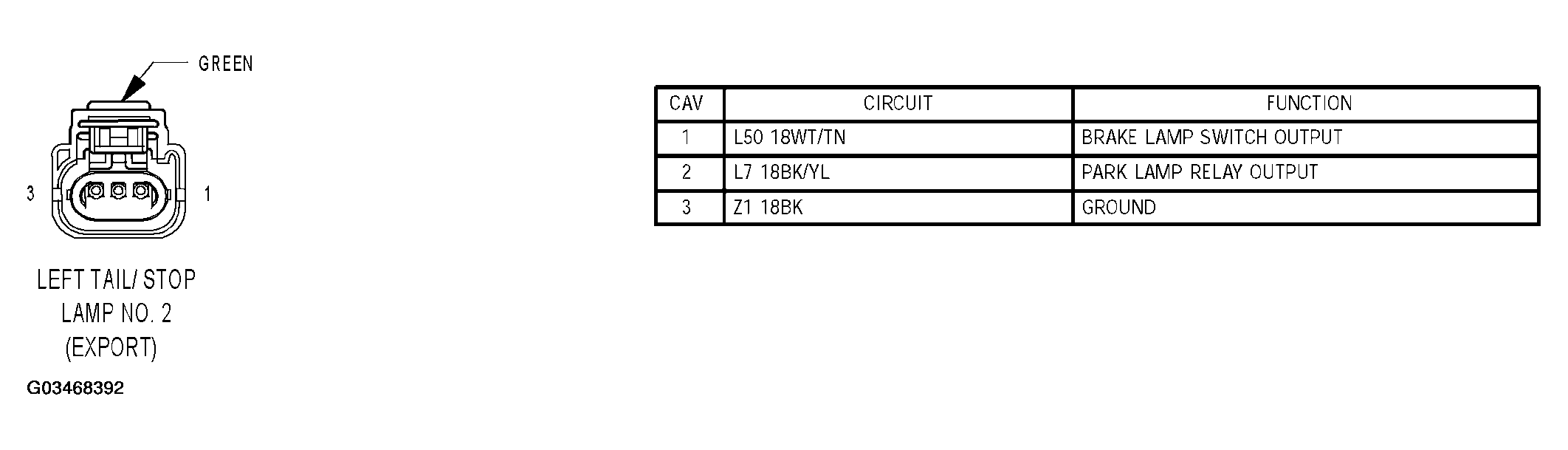

Fig 1: Left Tail/Stop Lamp 2 (Export) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
