Schematic Diagrams

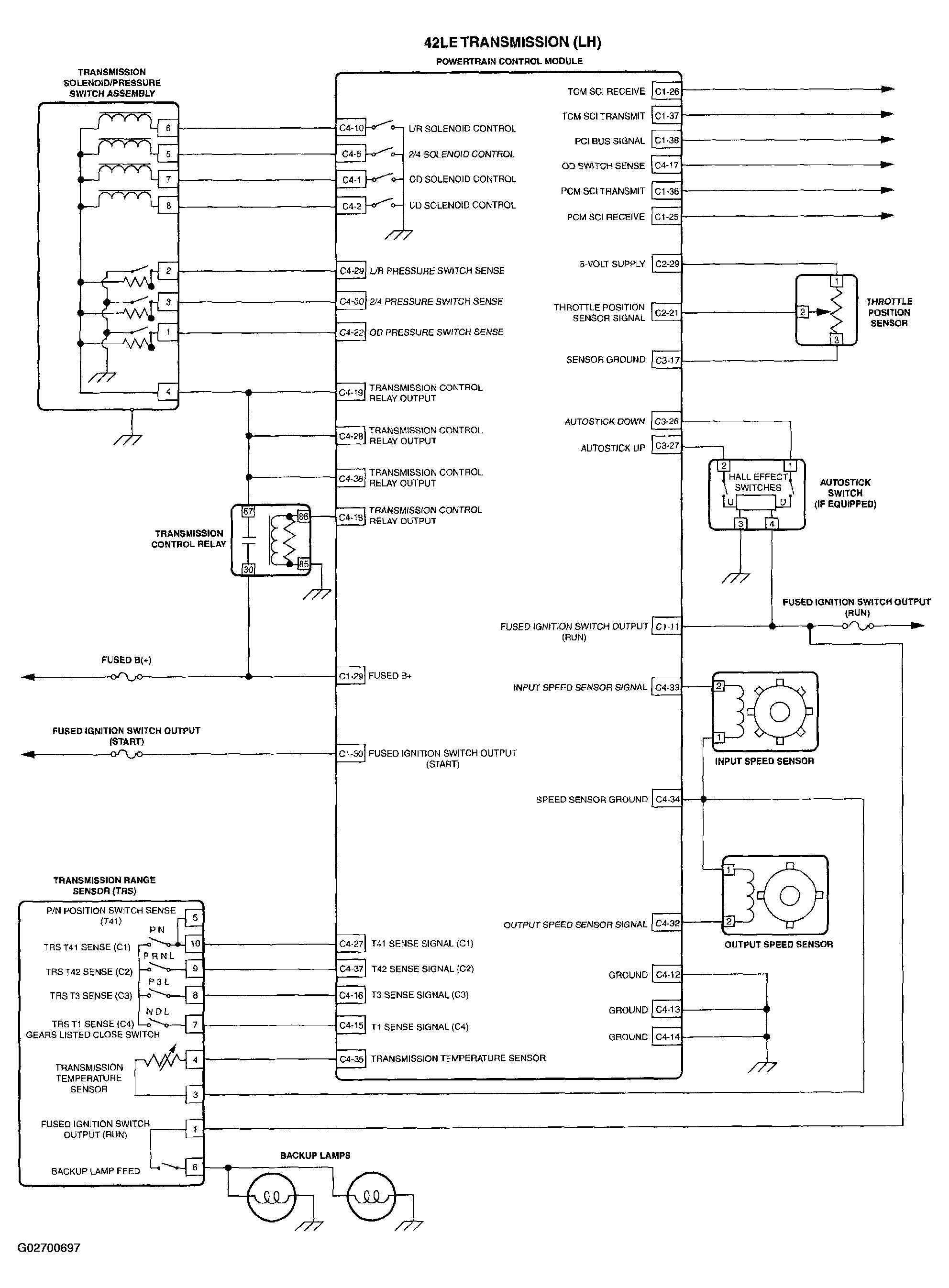

Fig 1: Schematic Diagrams - Powertrain Control Module (42LE Transmission - LH)
G02700697Courtesy of DAIMLERCHRYSLER CORP.
