Shift Schedules

The PCM has programming that allows it to select a variety of shift schedules. Shift schedule selection is dependent on the following:

• Shift Lever Position
• Throttle Position
• Engine Load
• Fluid Temperature
• Software Level

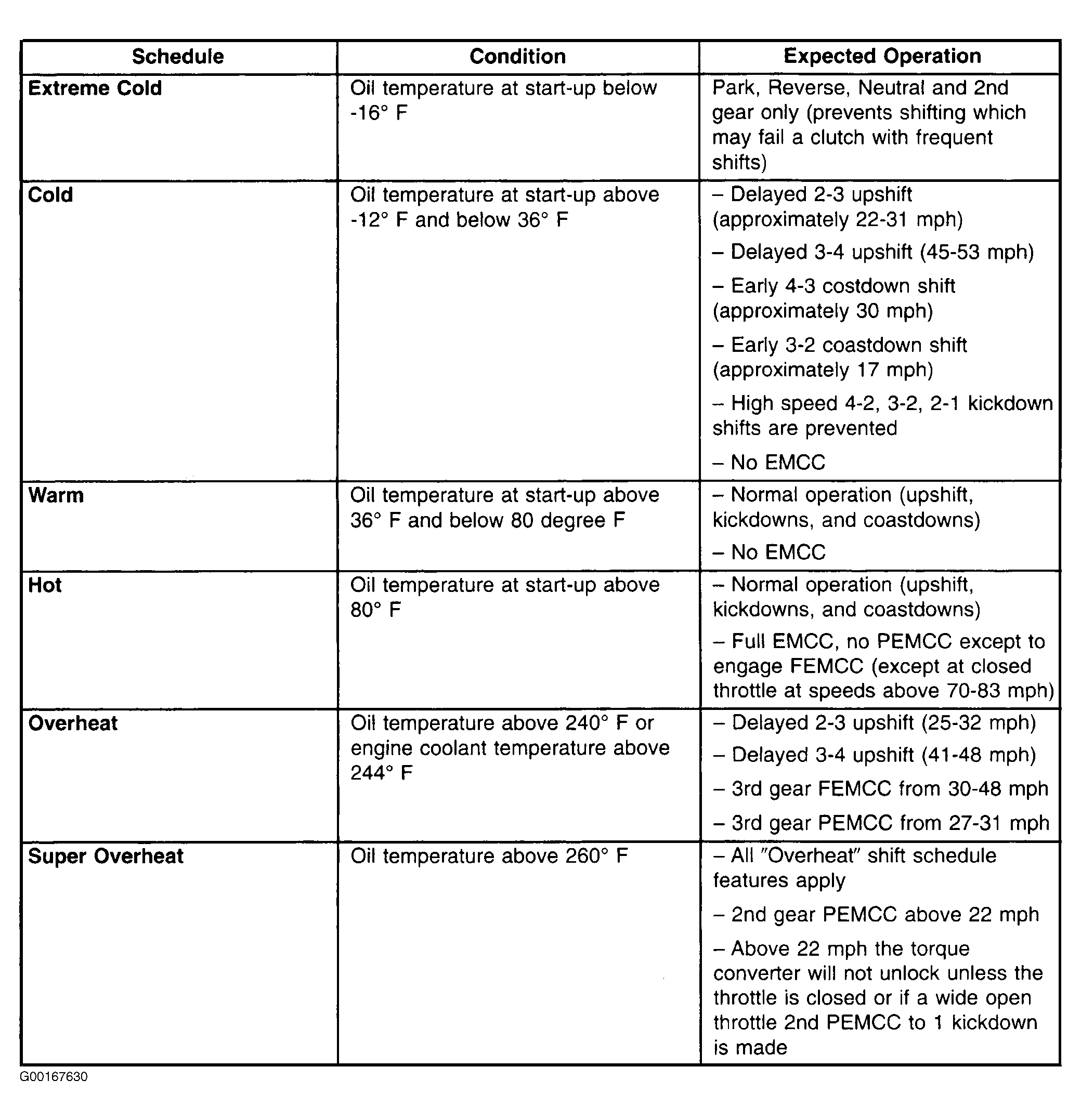

As driving conditions change, the PCM appropriately adjusts the shift schedule. Refer to the following illustration to determine the appropriate operation expected, depending on driving conditions. See Fig 1 .
