Automatic Temperature Control Head Connector End View
Automatic Temperature Control Head Connector End View

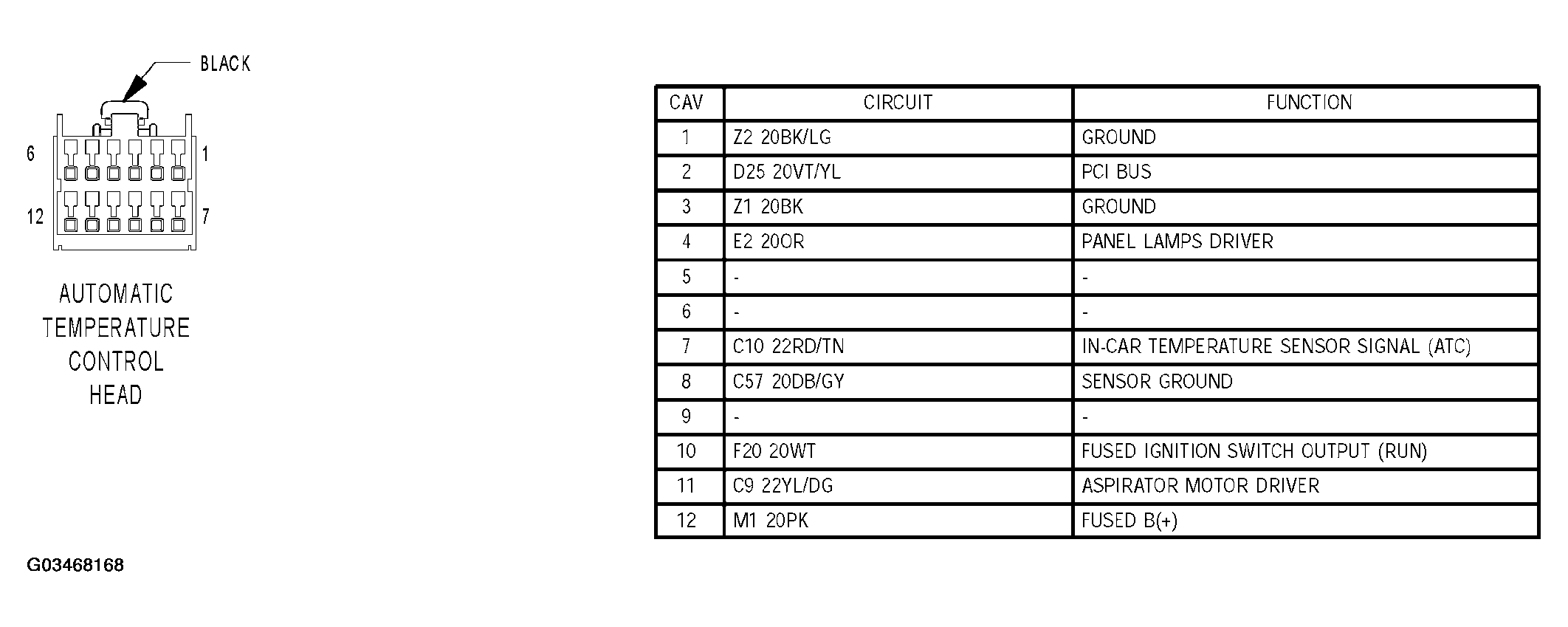

Fig 1: Automatic Temperature Control Head Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
