Body Control Module Connector End View (C1)

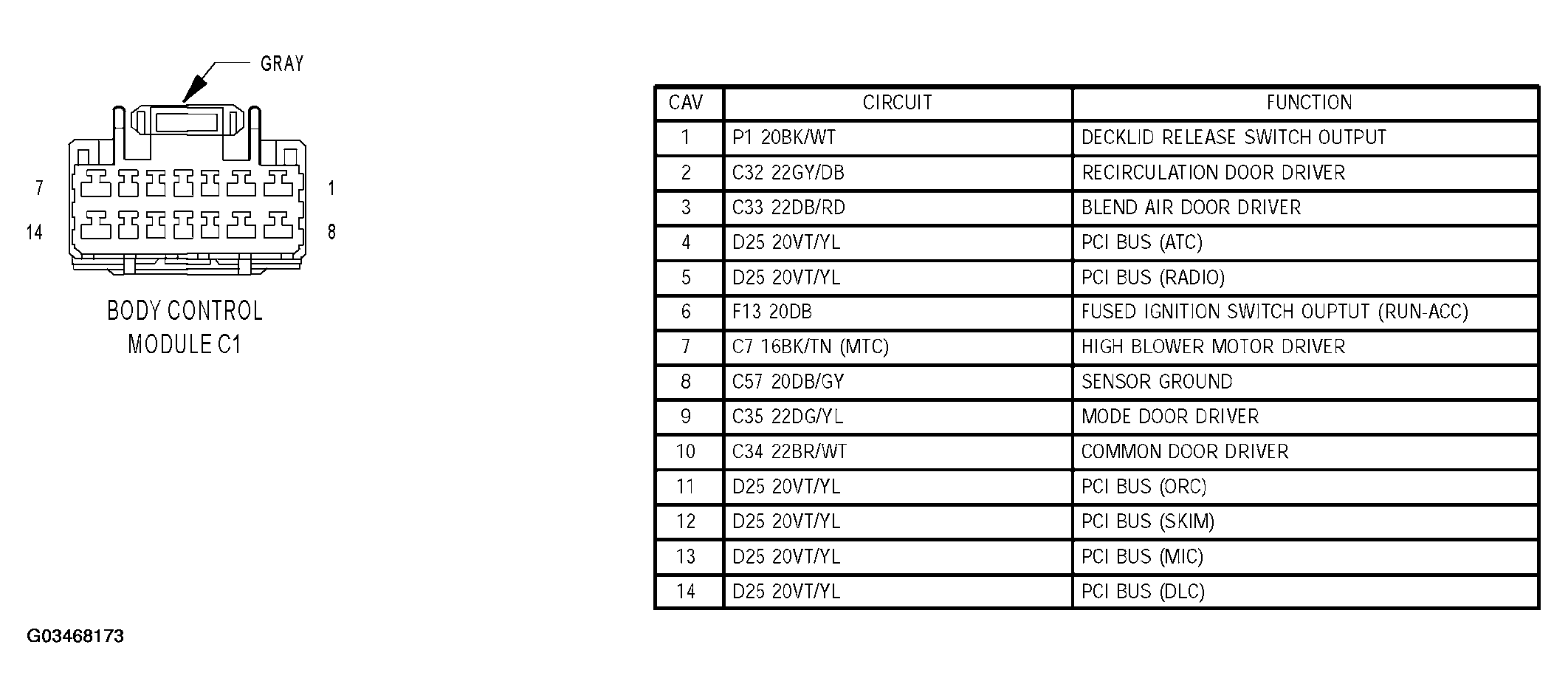

Fig 1: Body Control Module Connector End View (C1)
G03468173Courtesy of DAIMLERCHRYSLER CORP.
