Body Control Module Connector End View (C3)

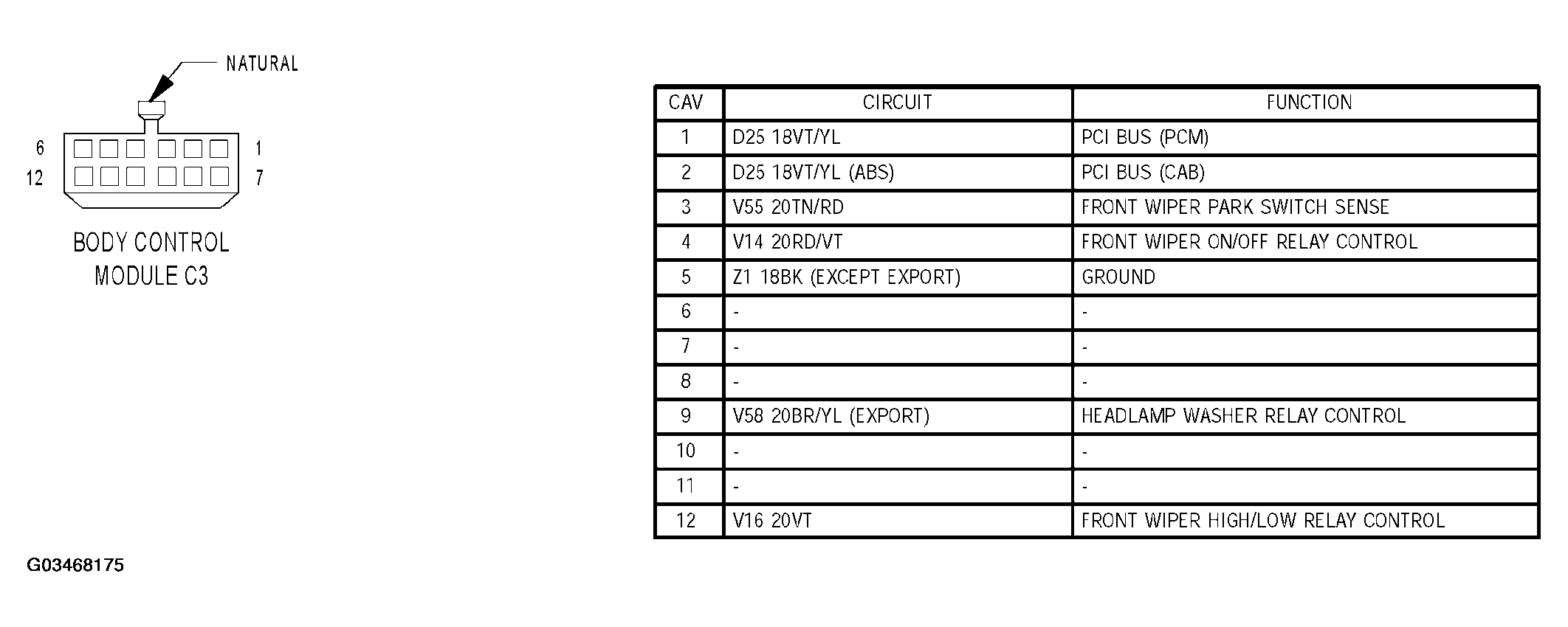

Fig 1: Body Control Module Connector End View (C3)
G03468175Courtesy of DAIMLERCHRYSLER CORP.
