Body Control Module Connector End View (C4)

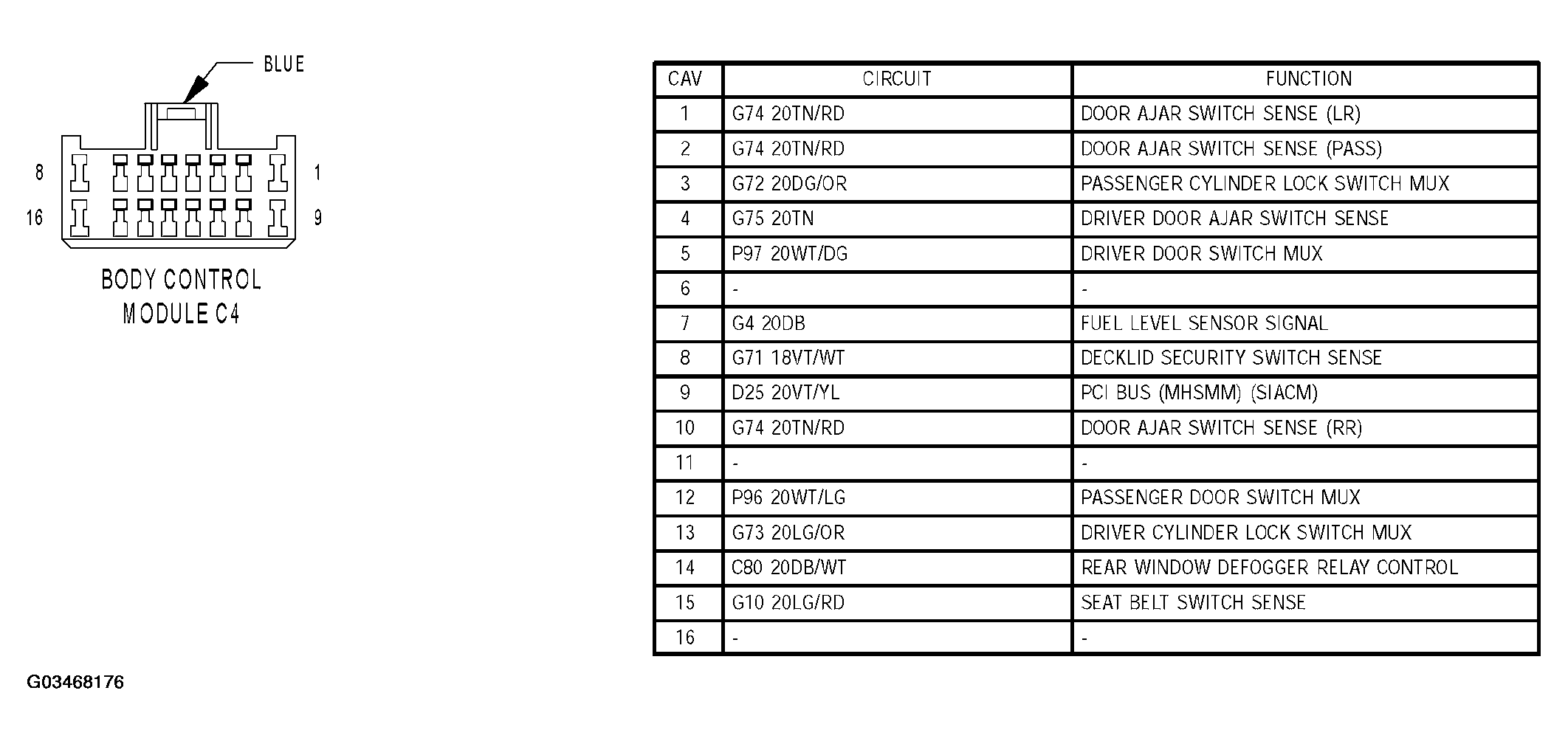

Fig 1: Body Control Module Connector End View (C4)
G03468176Courtesy of DAIMLERCHRYSLER CORP.
