Combination Flasher Connector End View
Combination Flasher Connector End View

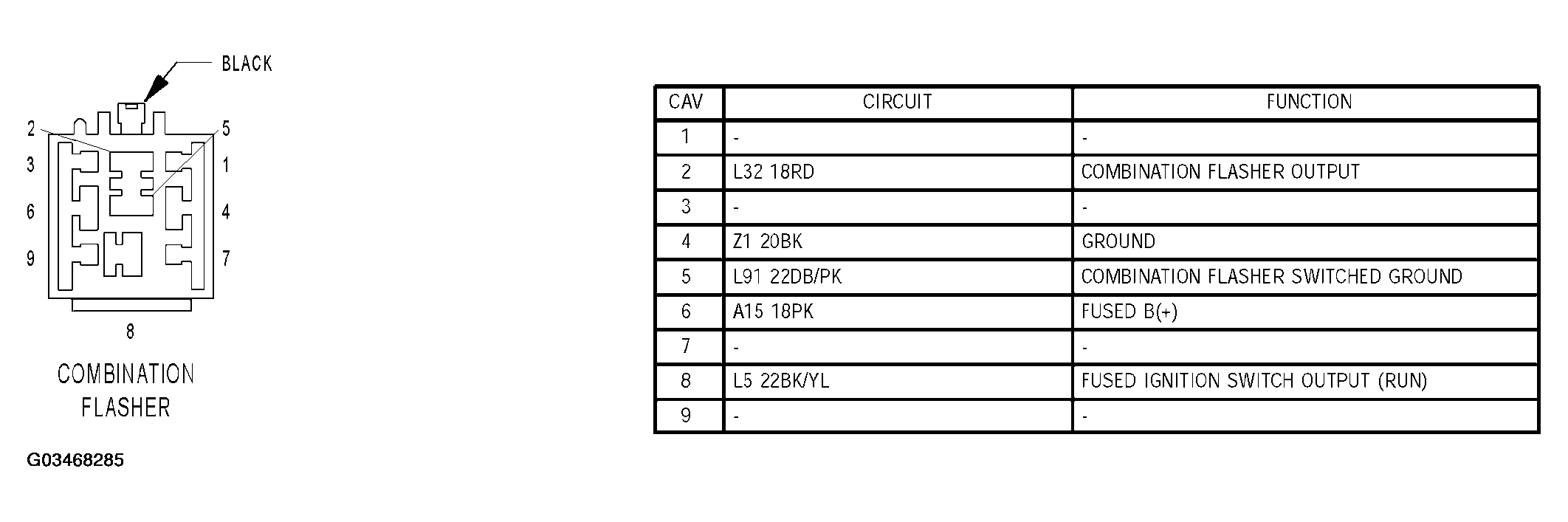

Fig 1: Combination Flasher Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
