Compact Disc Changer (Midline/Premium) Connector End View
Compact Disc Changer (Midline/Premium) Connector End View

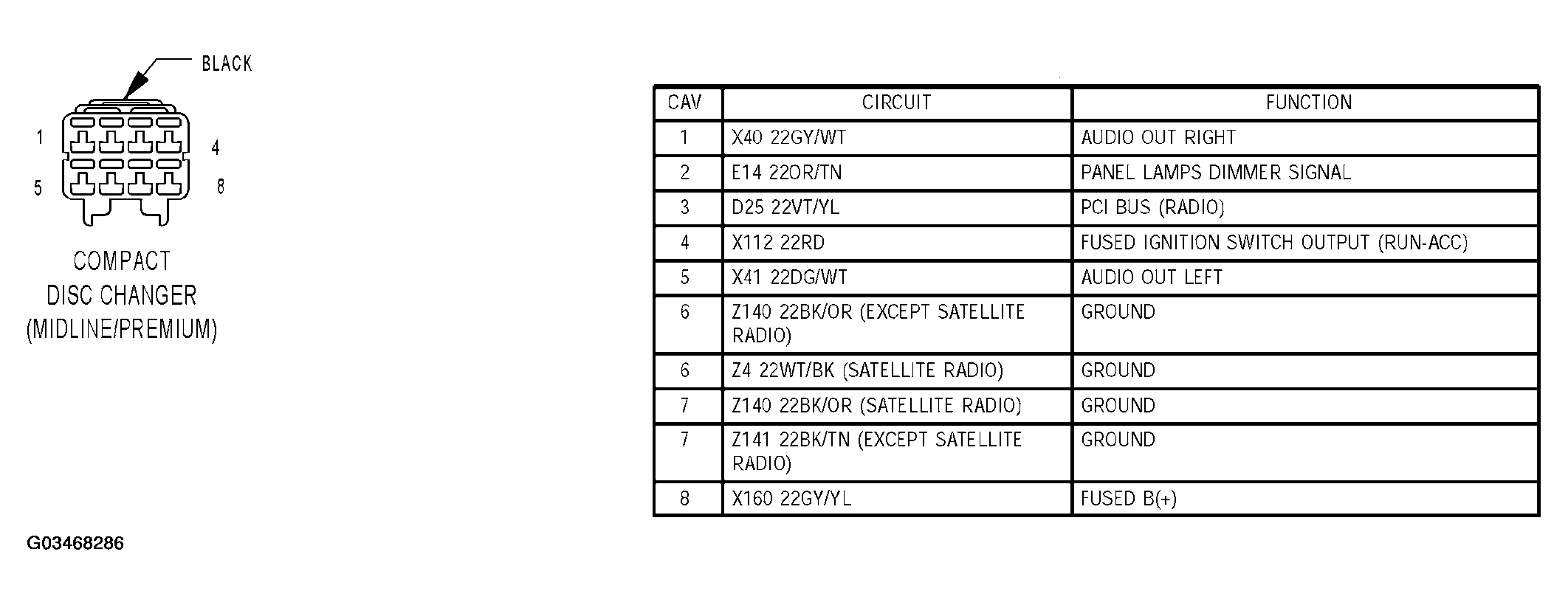

Fig 1: Compact Disc Changer (Midline/Premium) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
