Decklid Release Switch Connector End View
Decklid Release Switch Connector End View

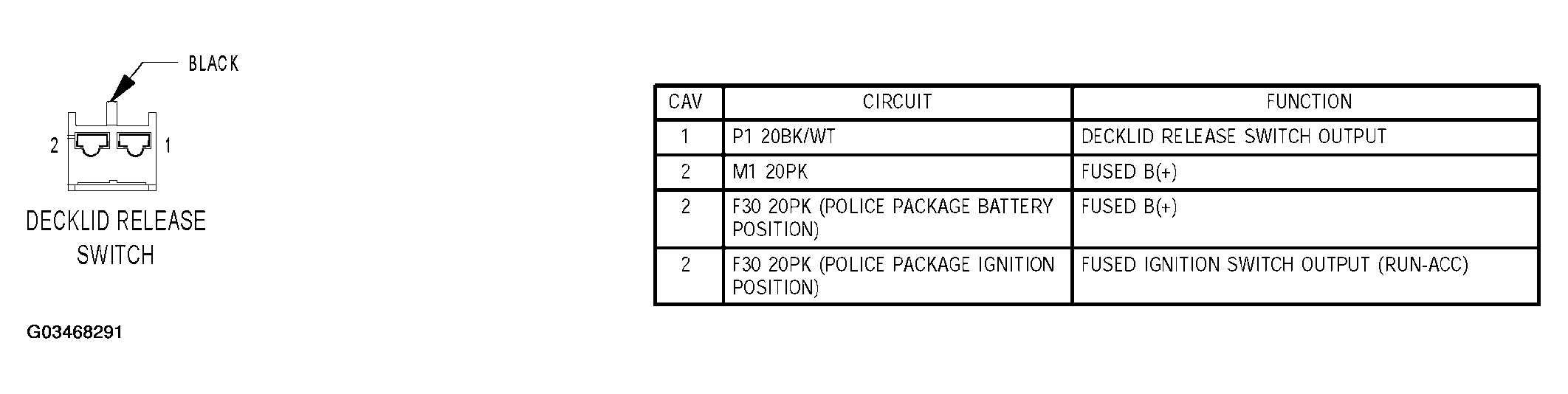

Fig 1: Decklid Release Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
