Driver Door Lock Motor/Ajar Switch Connector End View
Driver Door Lock Motor/Ajar Switch Connector End View

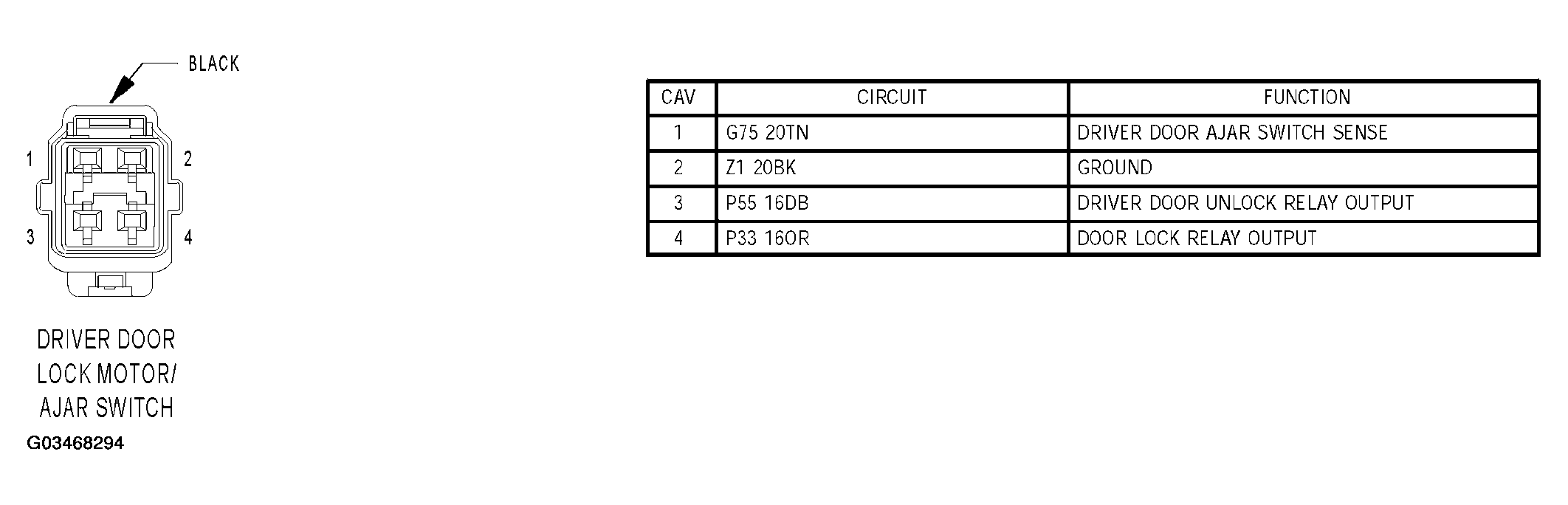

Fig 1: Driver Door Lock Motor/Ajar Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
