Driver Power Mirror (Except Memory) Connector End View
Driver Power Mirror (Except Memory) Connector End View

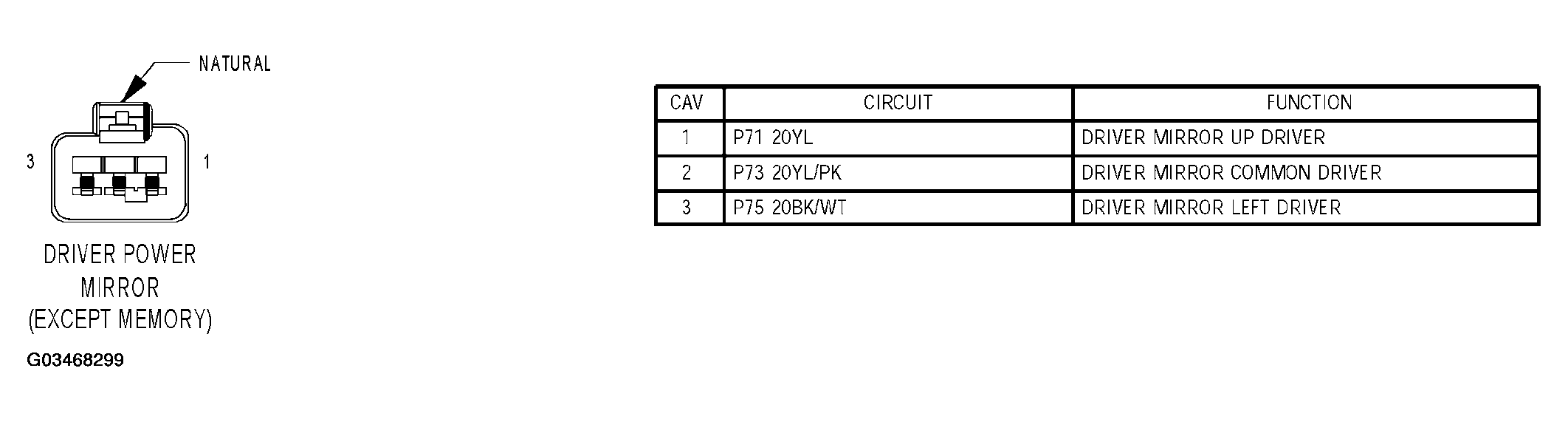

Fig 1: Driver Power Mirror (Except Memory) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
