Driver Power Window Switch Connector End View
Driver Power Window Switch Connector End View

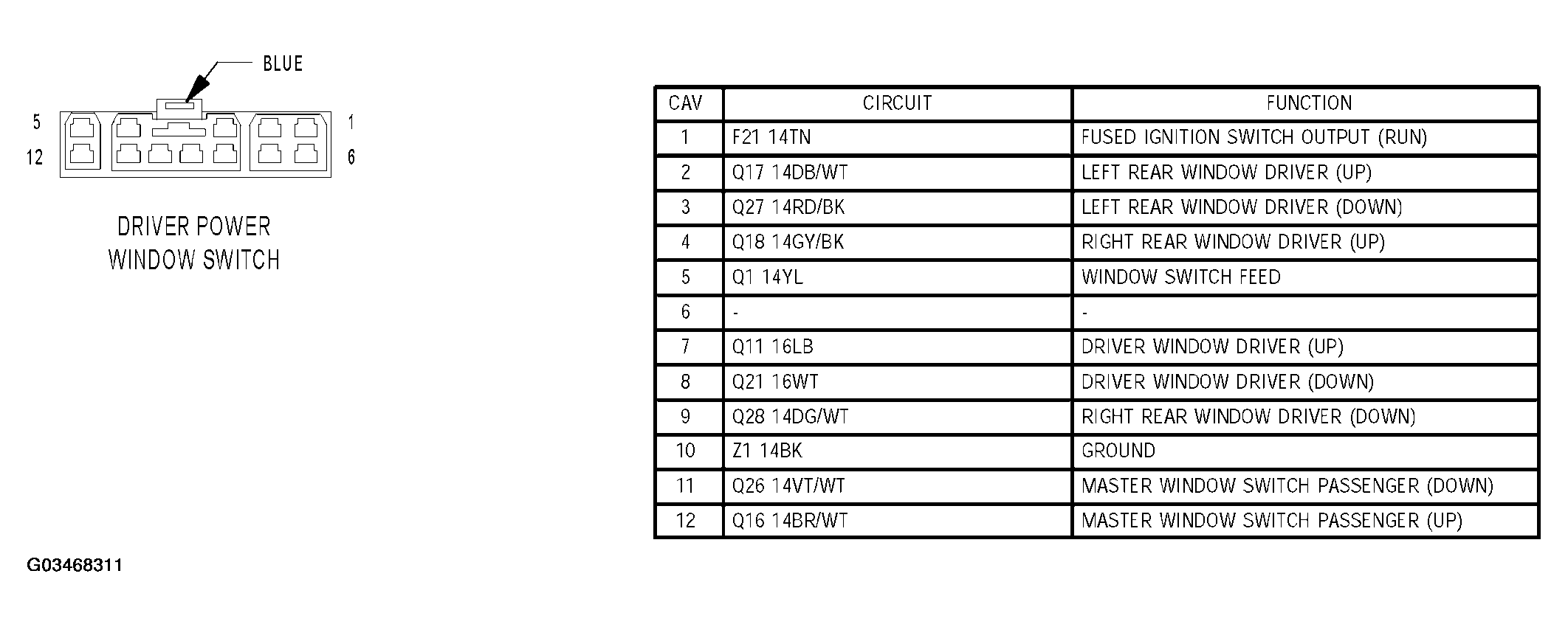

Fig 1: Driver Power Window Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
