Junction Block Body Control Module Connector End View
Junction Block Body Control Module Connector End View

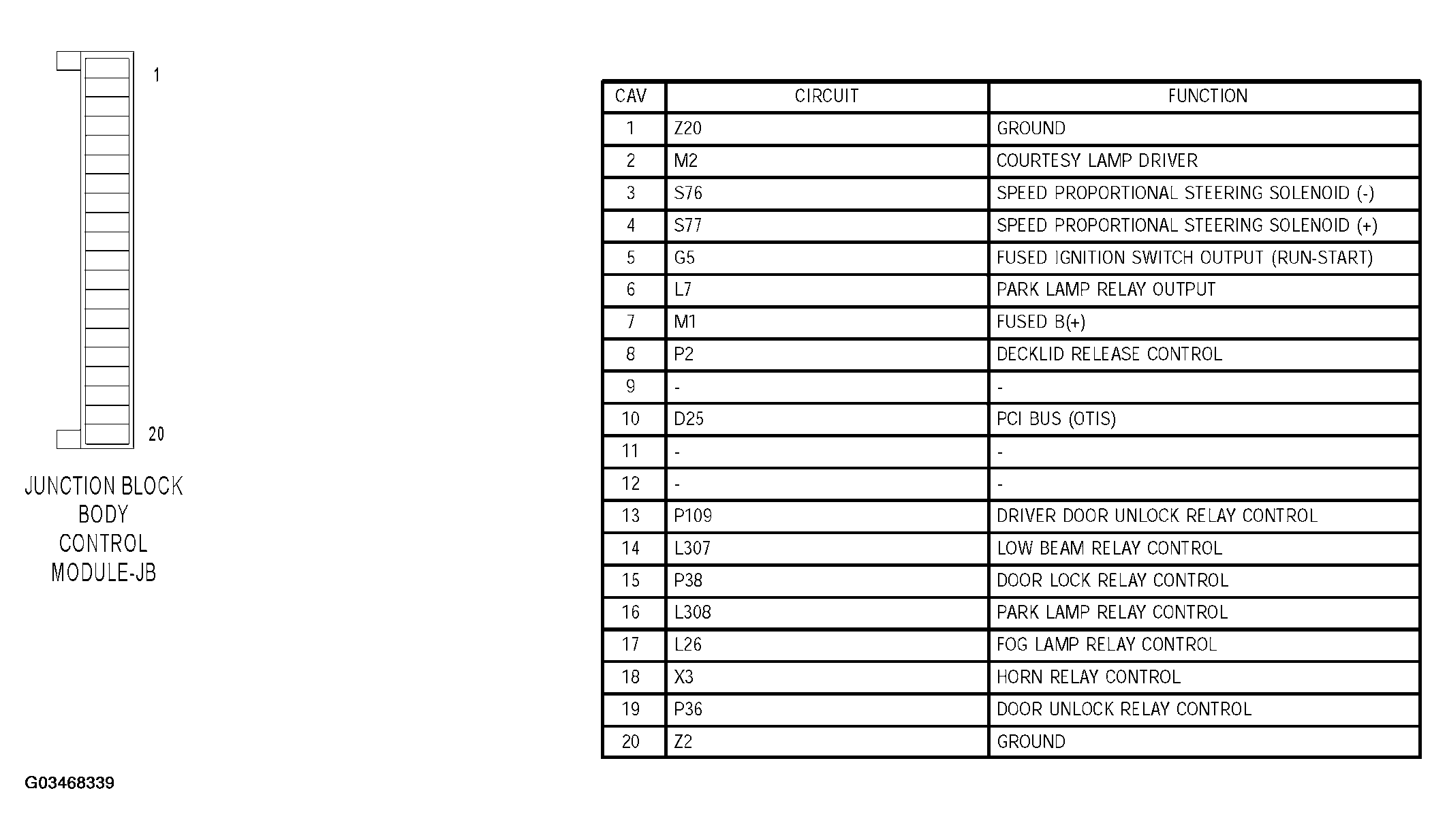

Fig 1: Junction Block Body Control Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
