Junction Block Connector End View (C3)

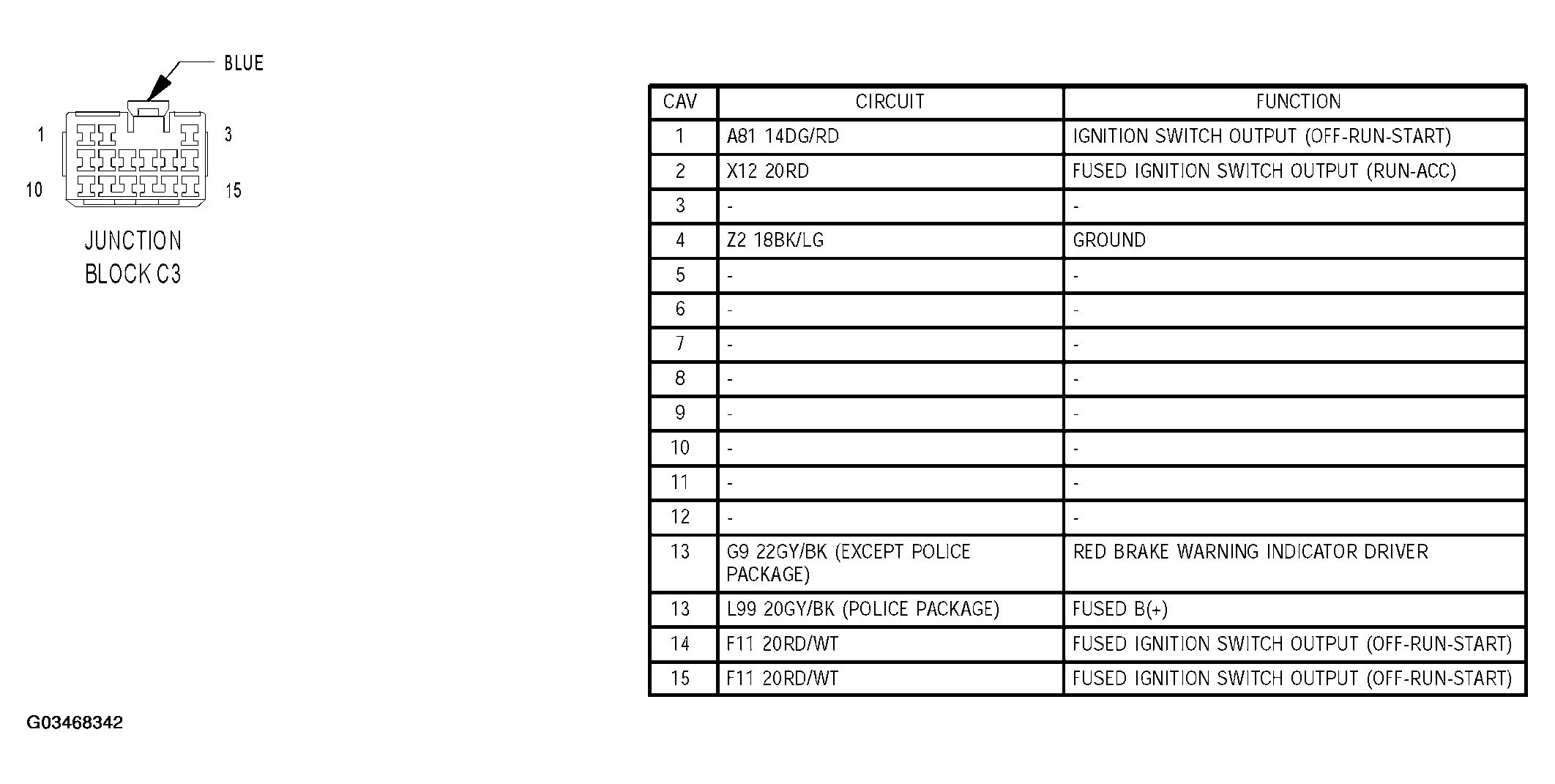

Fig 1: Junction Block Connector End View (C3)
G03468342Courtesy of DAIMLERCHRYSLER CORP.
