Left Bank Down Oxygen Sensor 2/2 Connector End View
Left Bank Down Oxygen Sensor 2/2 Connector End View

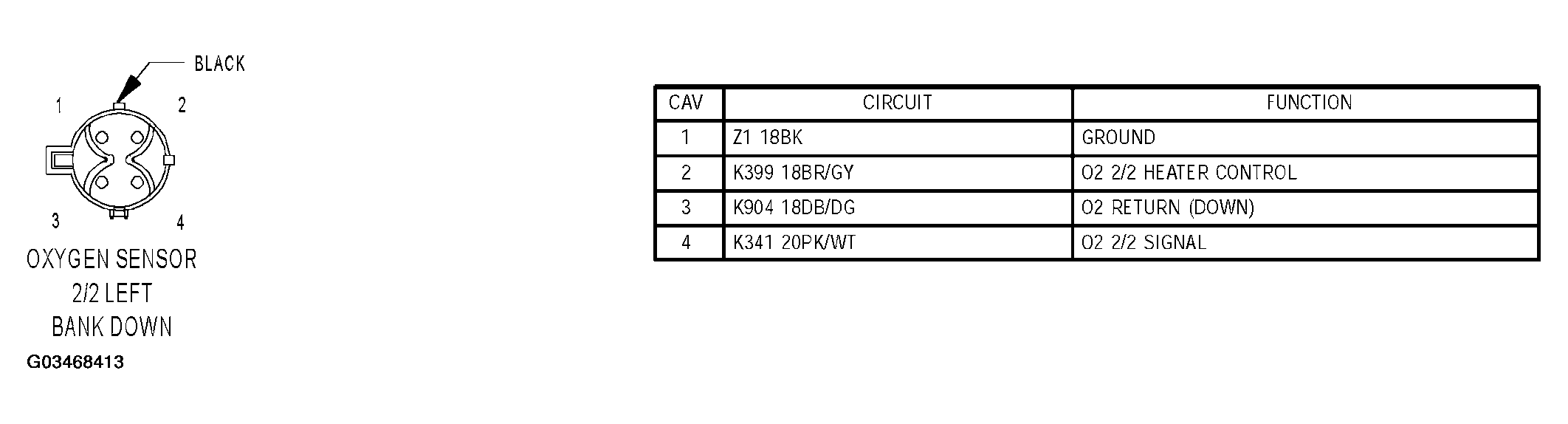

Fig 1: Left Bank Down Oxygen Sensor 2/2 Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
