Manual Temperature Control Head Connector End View (C2)

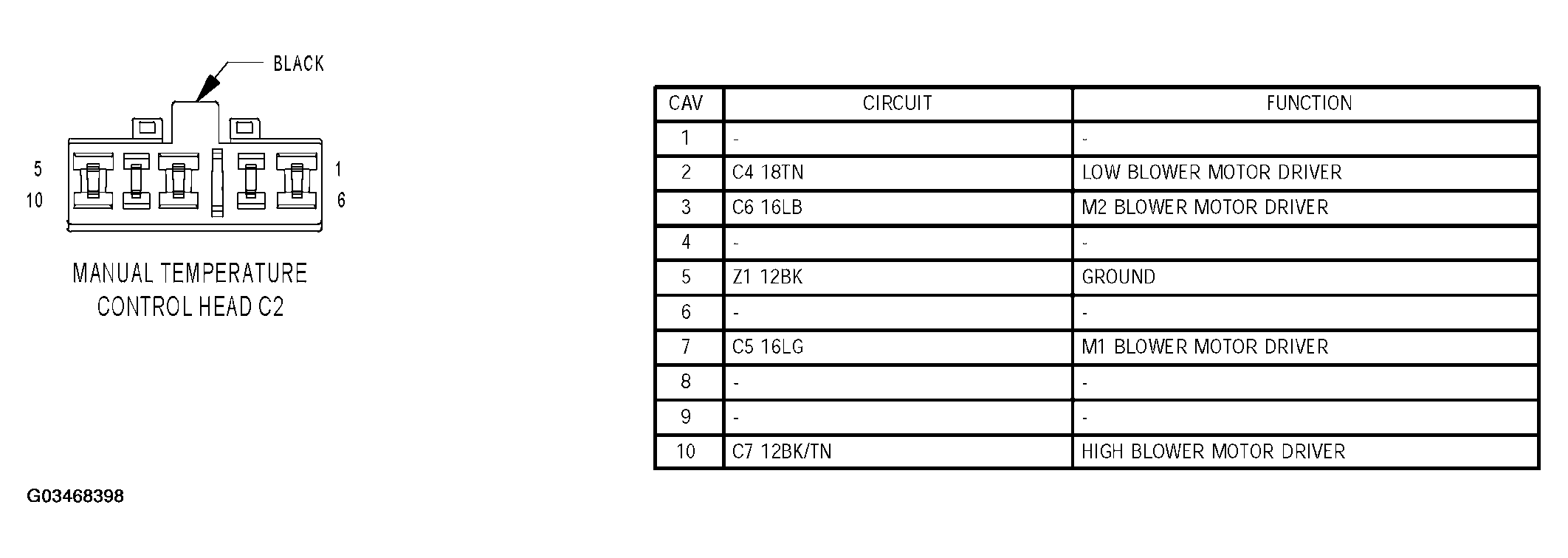

Fig 1: Manual Temperature Control Head Connector End View (C2)
G03468398Courtesy of DAIMLERCHRYSLER CORP.
