Passenger Power Mirror Connector End View
Passenger Power Mirror Connector End View

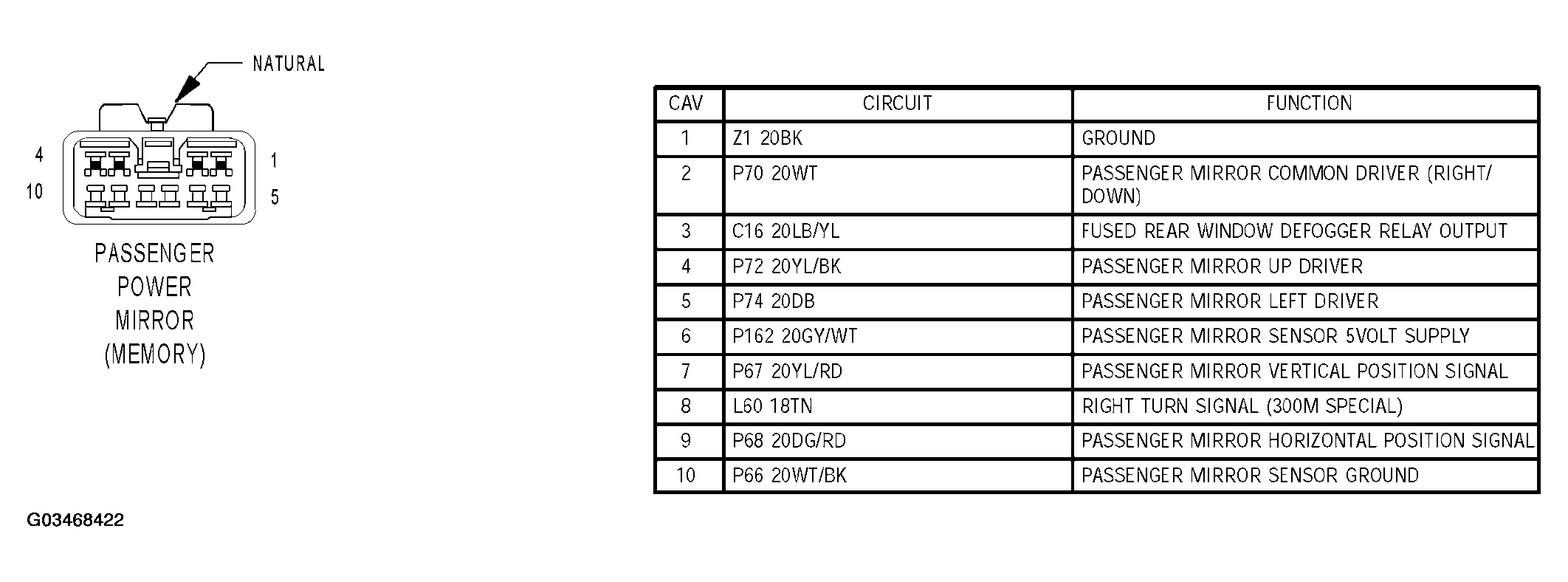

Fig 1: Passenger Power Mirror Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
