Powertrain Control Module Connector End View (C1)

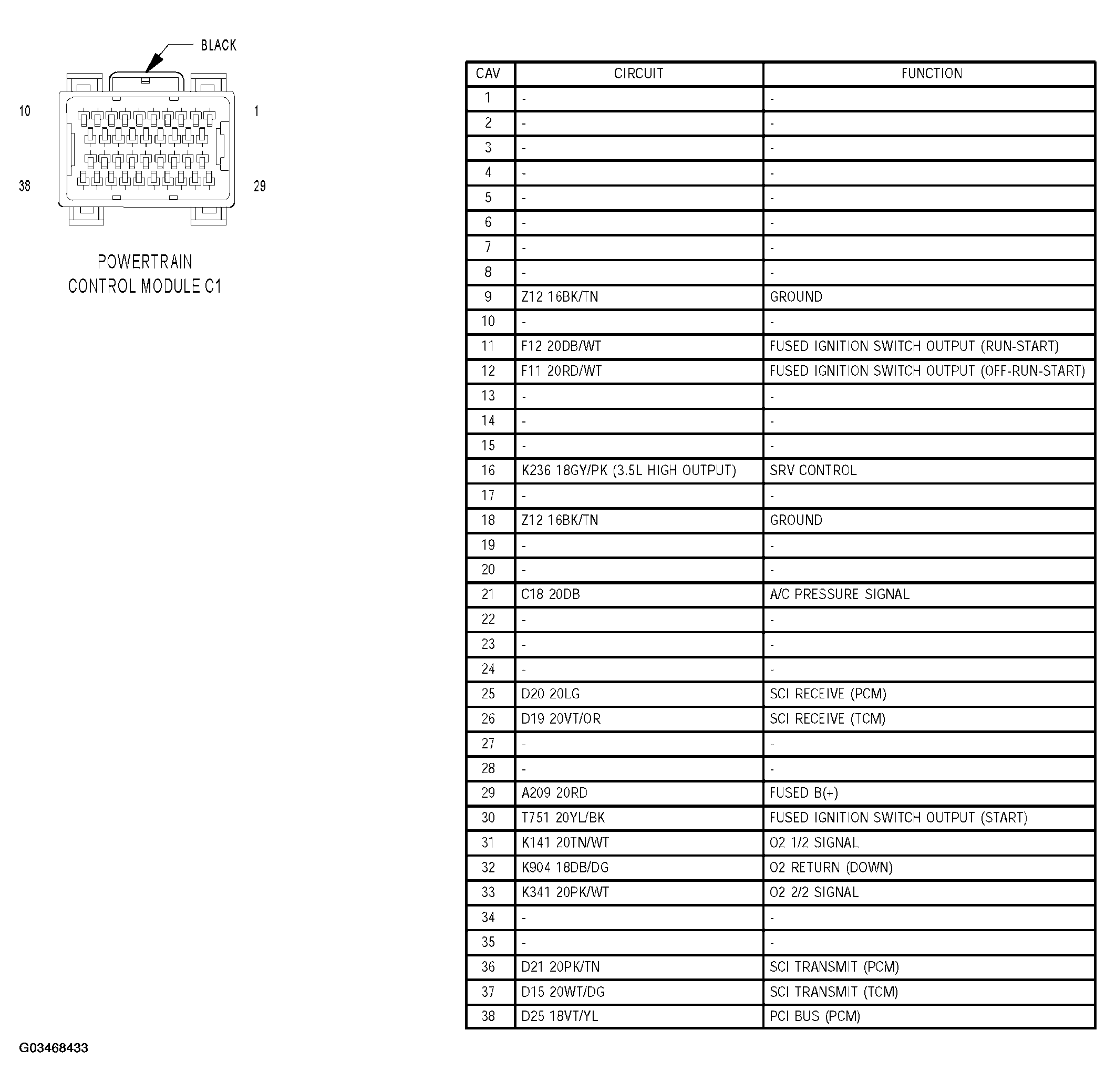

Fig 1: Powertrain Control Module Connector End View (C1)
G03468433Courtesy of DAIMLERCHRYSLER CORP.
