Powertrain Control Module Connector End View (C2)

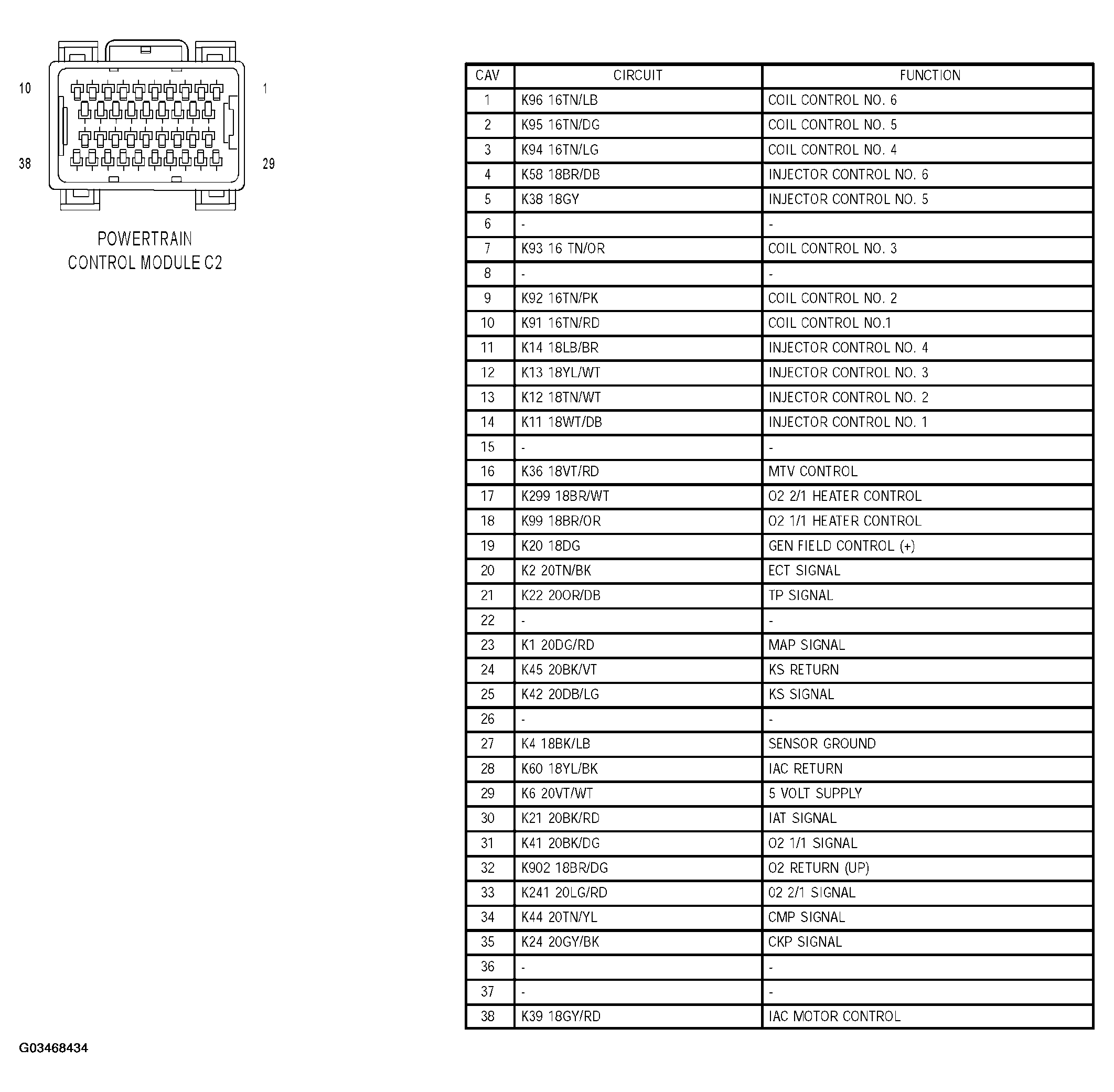

Fig 1: Powertrain Control Module Connector End View (C2)
G03468434Courtesy of DAIMLERCHRYSLER CORP.
