Satellite Receiver Module (Premium) Connector End View (C1)
Satellite Receiver Module (Premium) Connector End View (C1)

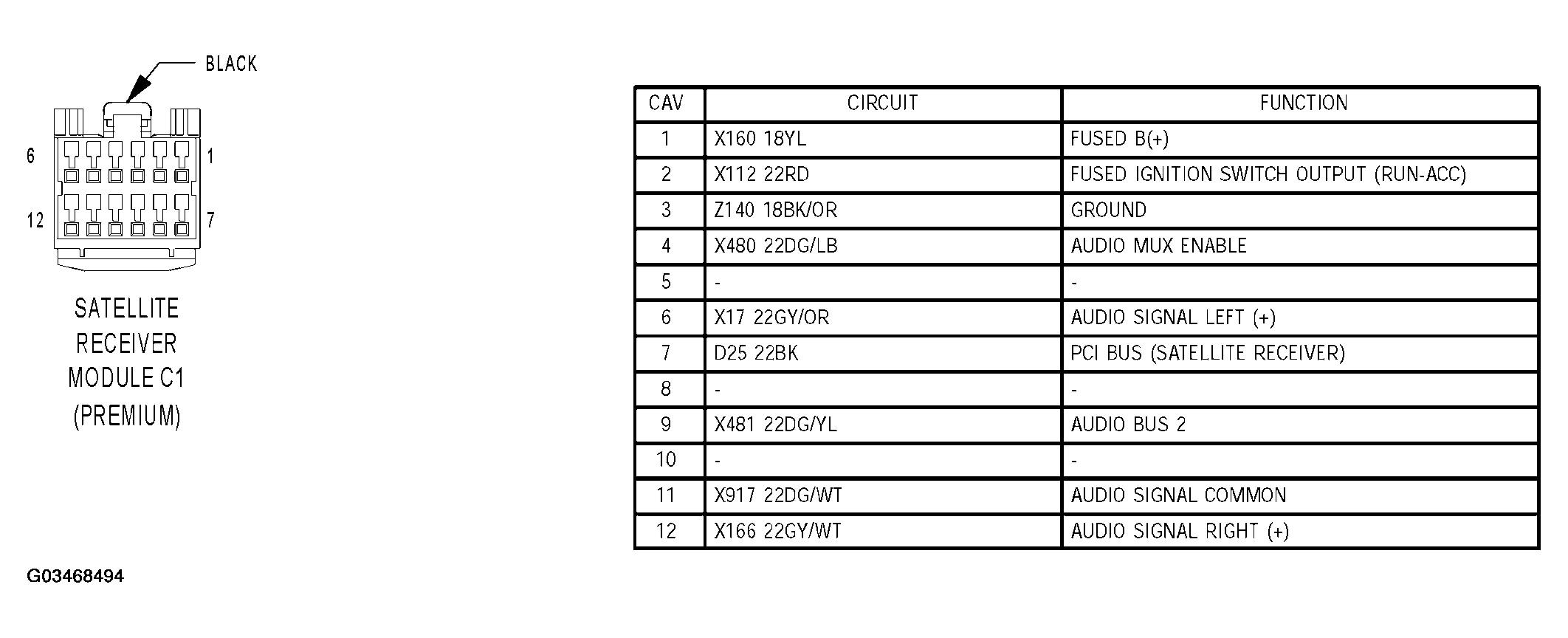

Fig 1: Satellite Receiver Module (Premium) Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
