Throttle Position Sensor (3.5L) Connector End View
Throttle Position Sensor (3.5L) Connector End View

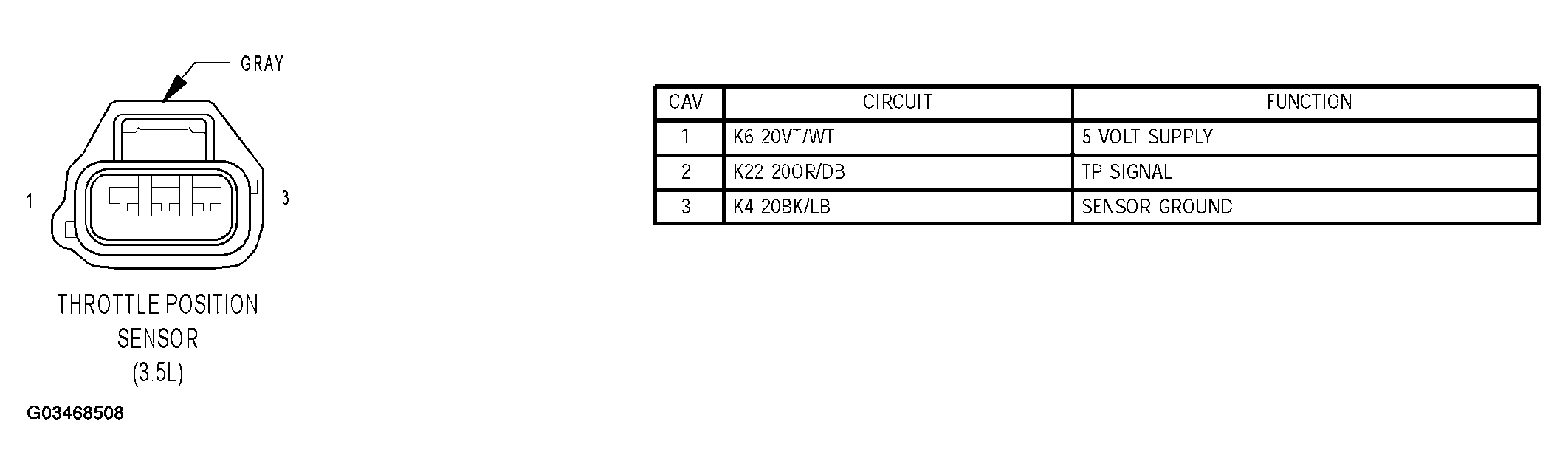

Fig 1: Throttle Position Sensor (3.5L) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
