Memory Heated Seat/Mirror Module Connector End View (C2)

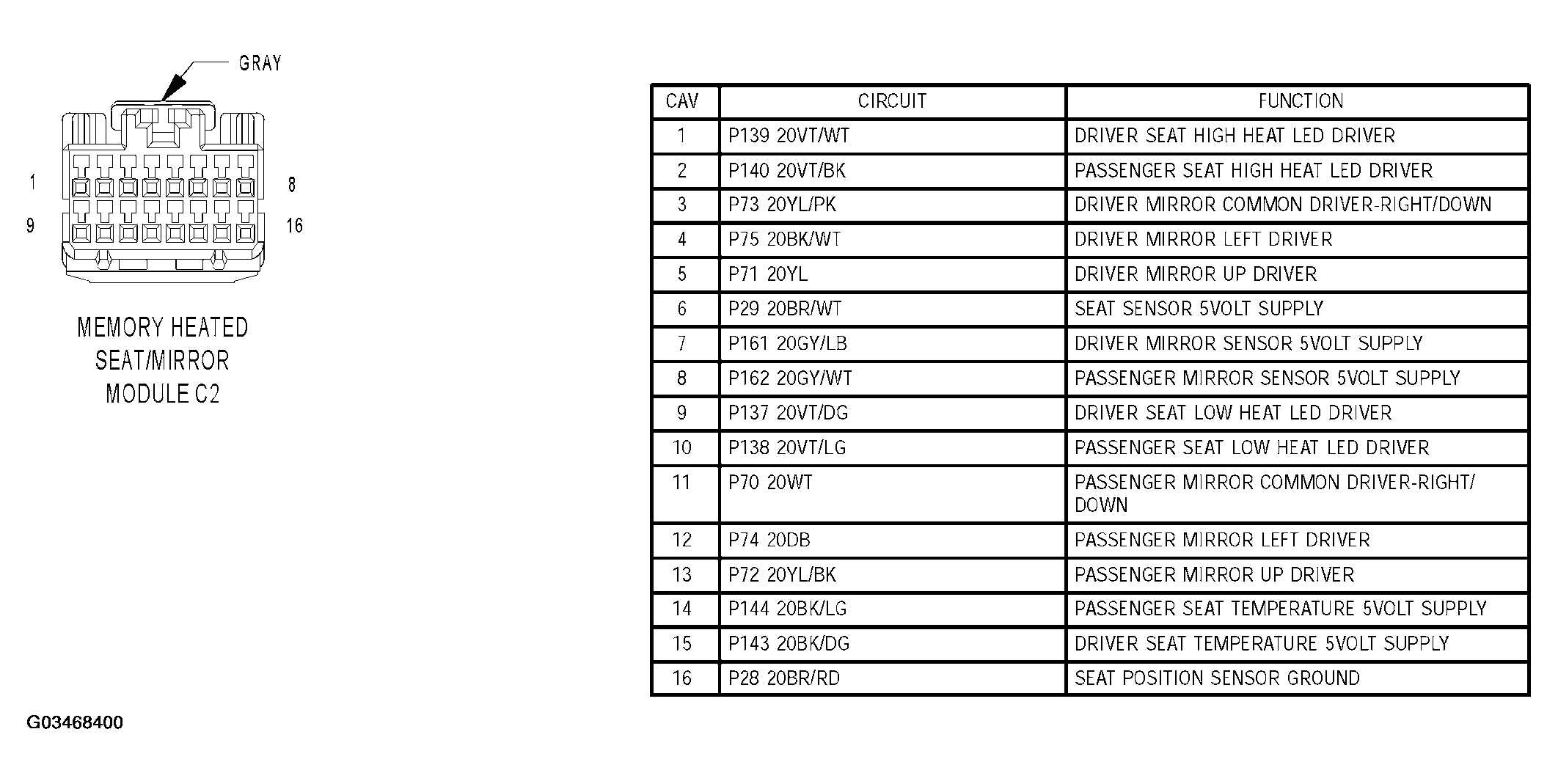

Fig 1: Memory Heated Seat/Mirror Module Connector End View (C2)
G03468400Courtesy of DAIMLERCHRYSLER CORP.
