Engine Controls - Self-Diagnostics
›
Connector Identification
›

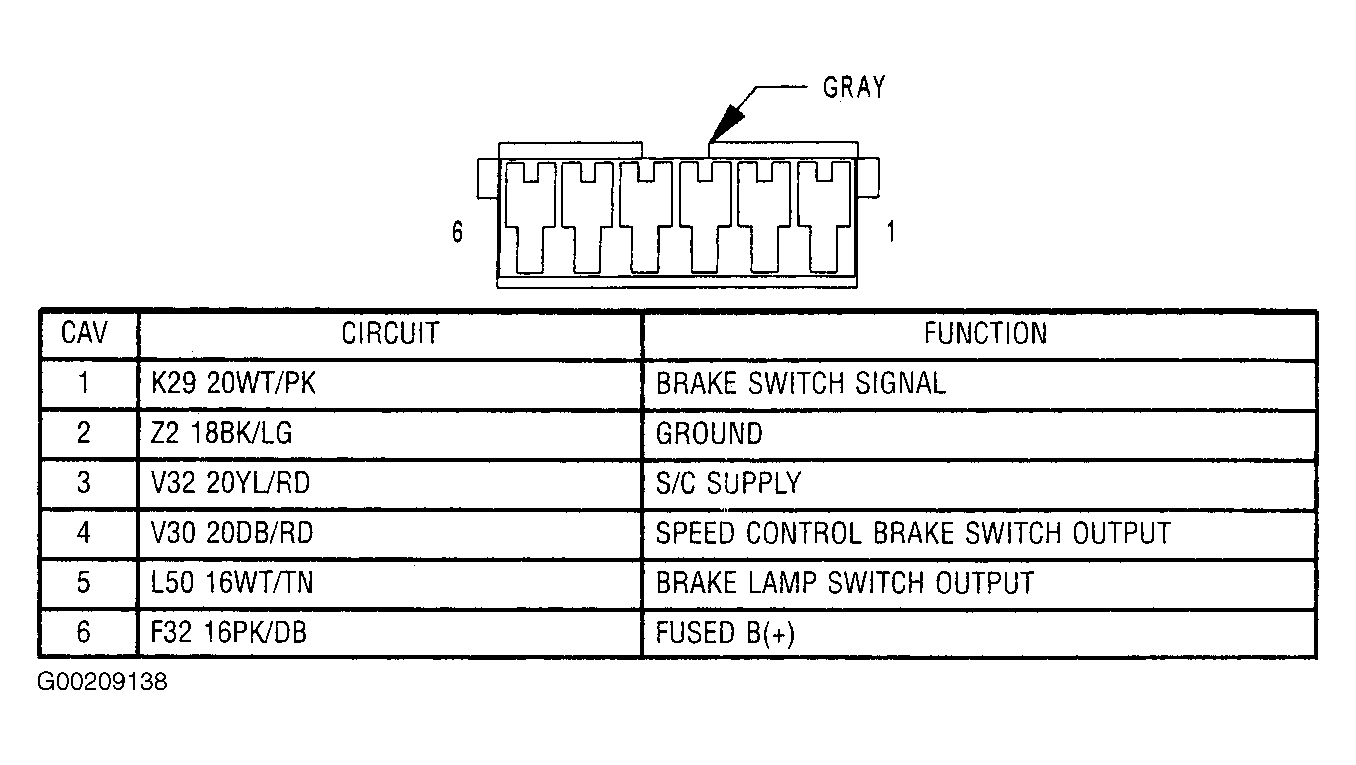

BRAKELIGHT Switch Harness Connector End View
BRAKELIGHT Switch Harness Connector End View
Fig 1: Identifying Brakelight Switch Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
