Fuel Pump Module Harness Connector End View
Fuel Pump Module Harness Connector End View

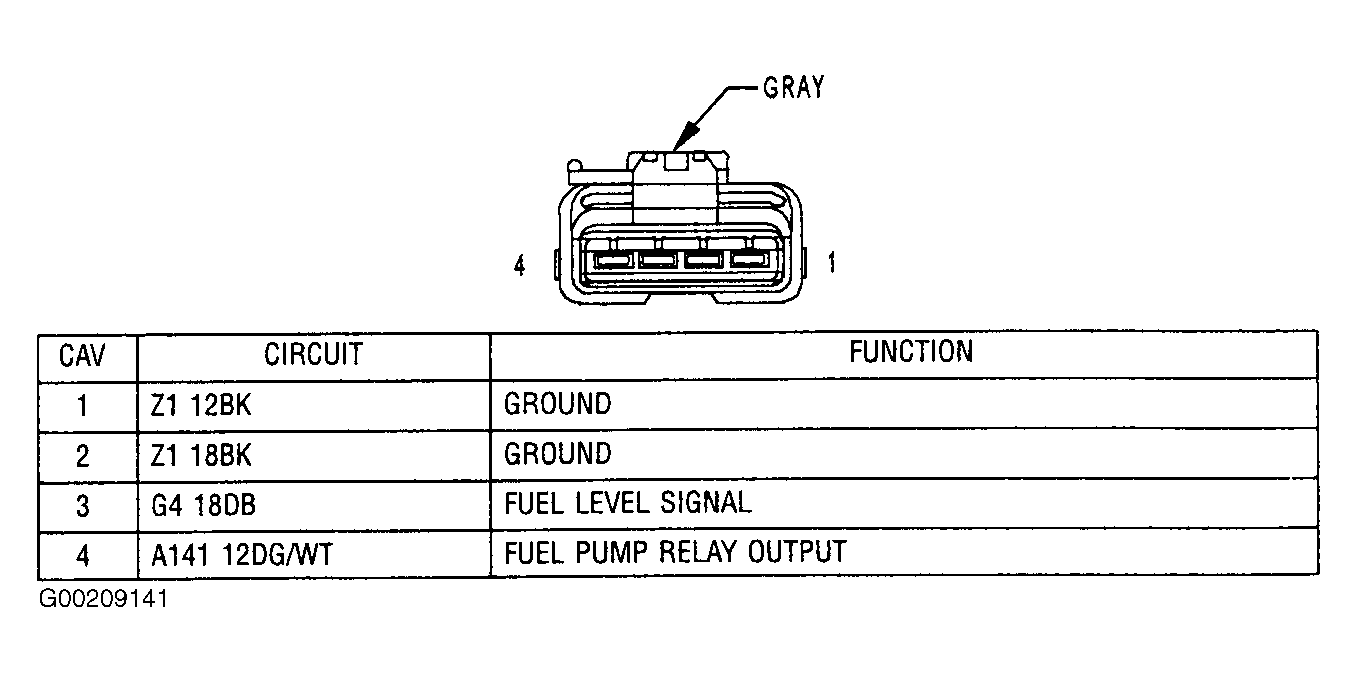

Fig 1: Identifying Fuel Pump Module Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
