Clockspring Connector End View (C1)

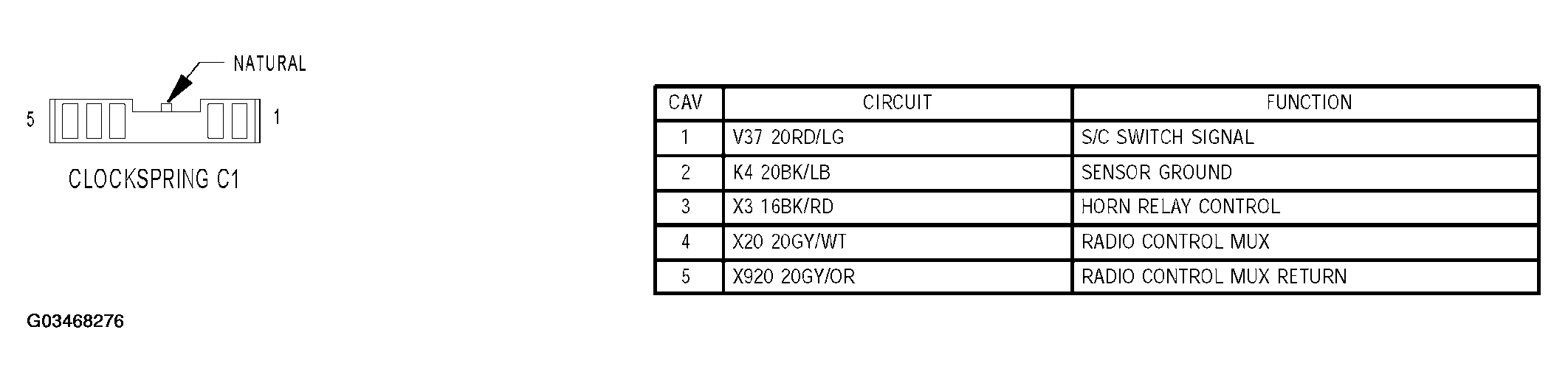

Fig 1: Clockspring Connector End View (C1)
G03468276Courtesy of DAIMLERCHRYSLER CORP.
