Left Back Up Lamp (300M/Export) Connector End View
Left Back Up Lamp (300M/Export) Connector End View

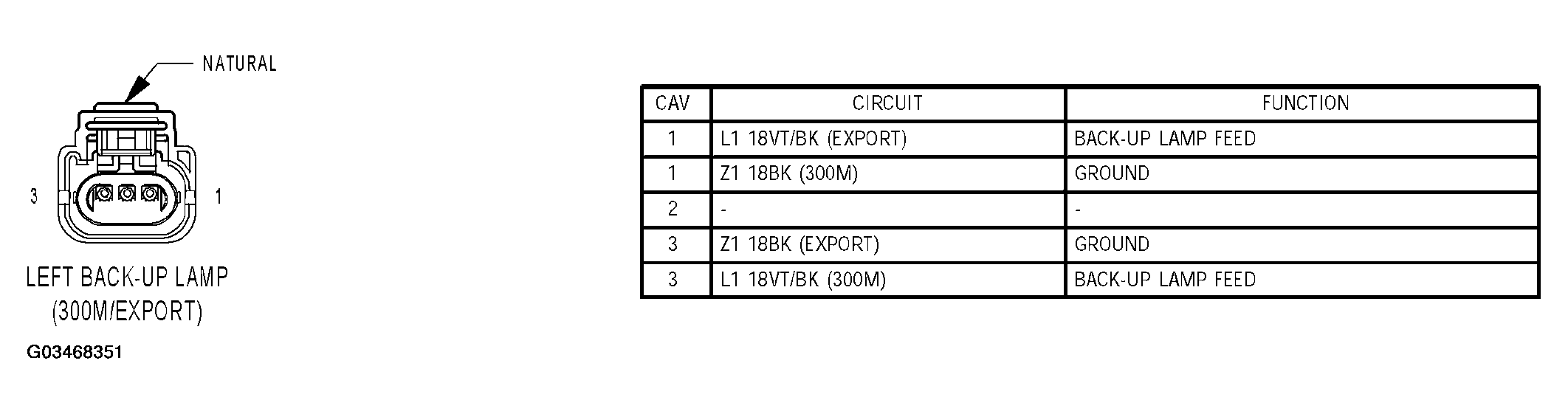

Fig 1: Left Back Up Lamp (300M/Export) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
