Manual Temperature Control Head Connector End View (C1)

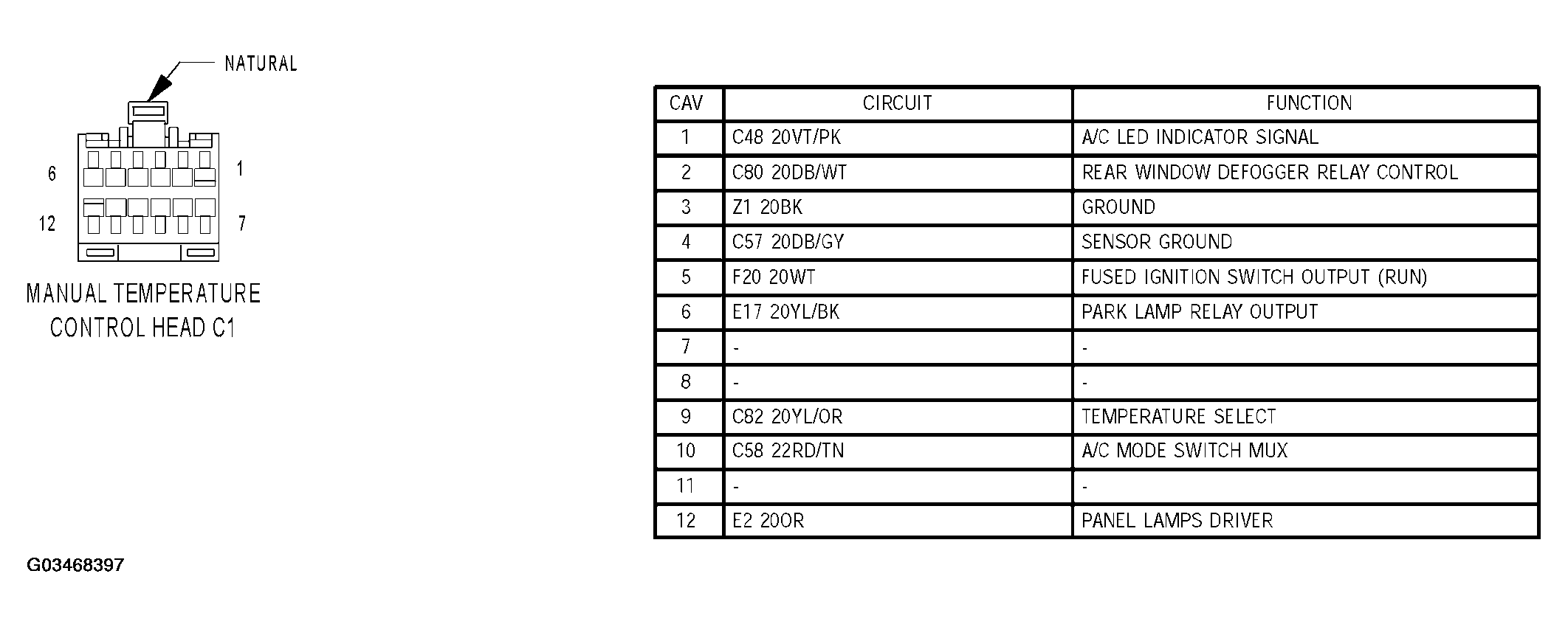

Fig 1: Manual Temperature Control Head Connector End View (C1)
G03468397Courtesy of DAIMLERCHRYSLER CORP.
