Memory Heated Seat/Mirror Module Connector End View (C1)

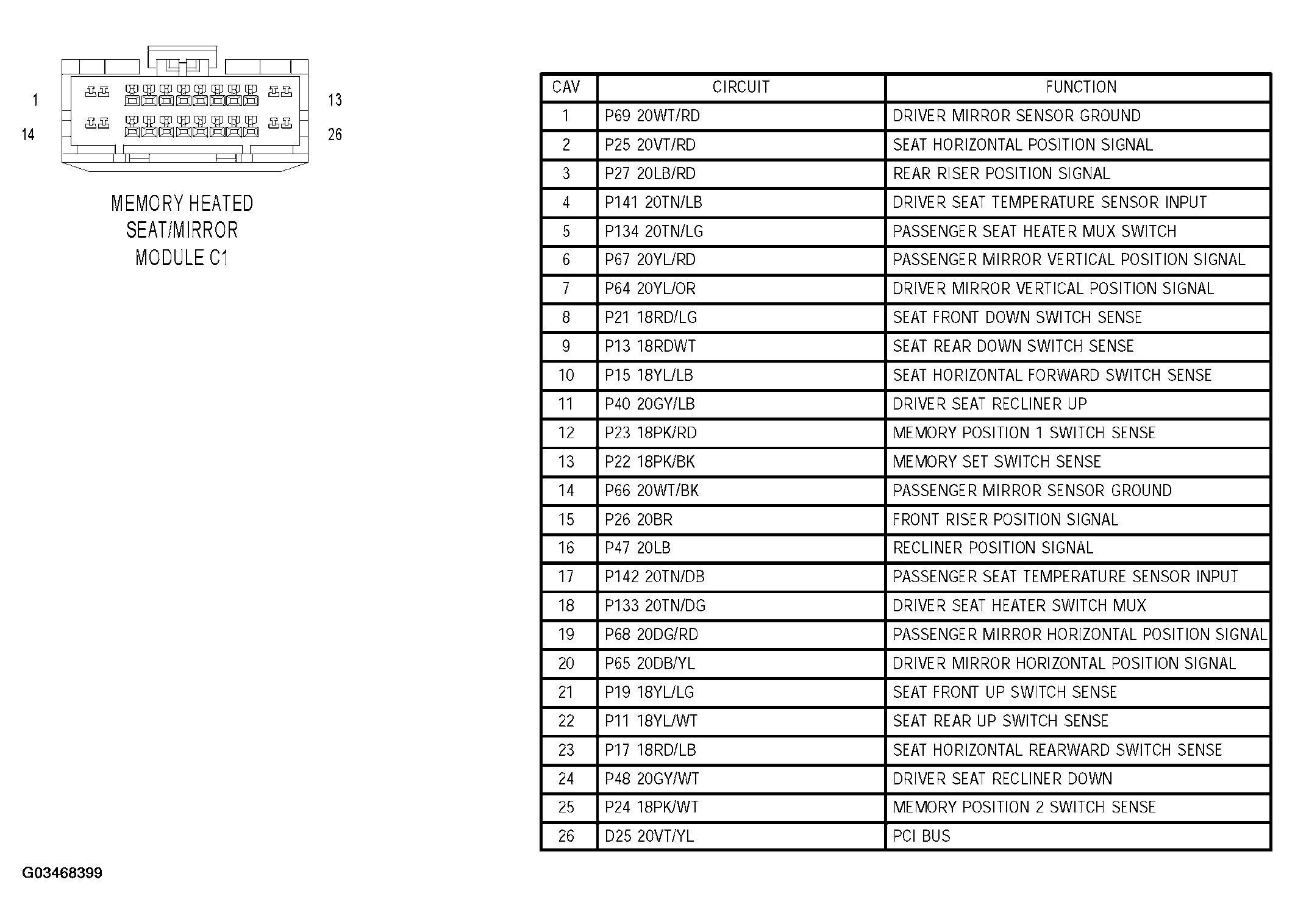

Fig 1: Memory Heated Seat/Mirror Module Connector End View (C1)
G03468399Courtesy of DAIMLERCHRYSLER CORP.
