Memory Heated Seat/Mirror Module Connector End View (C3)

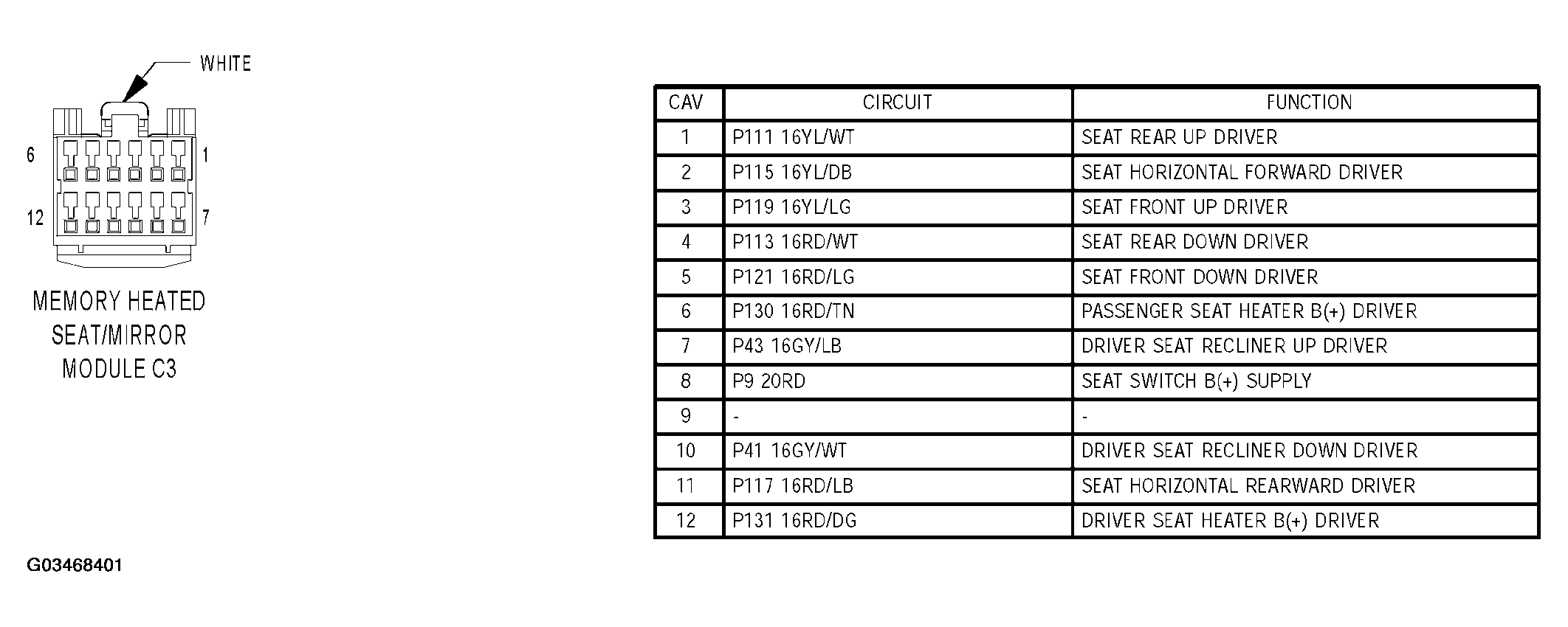

Fig 1: Memory Heated Seat/Mirror Module Connector End View (C3)
G03468401Courtesy of DAIMLERCHRYSLER CORP.
