Passenger Door Lock Motor/Ajar Switch Connector End View
Passenger Door Lock Motor/Ajar Switch Connector End View

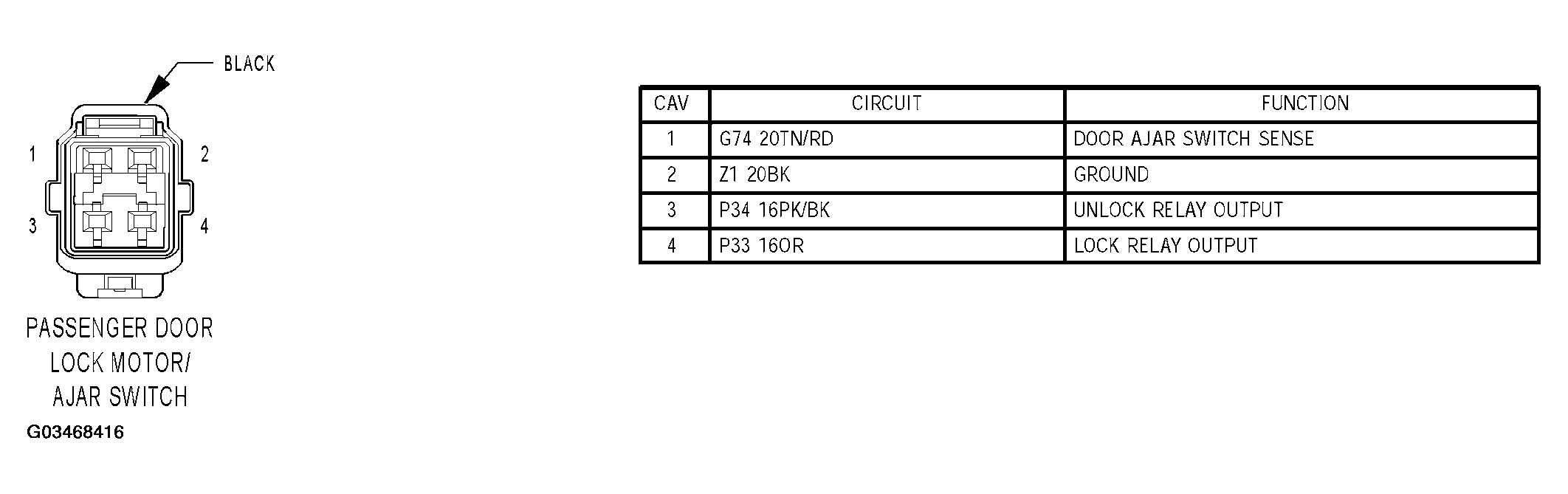

Fig 1: Passenger Door Lock Motor/Ajar Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
