Rear Window Defogger Relay Connector End View
Rear Window Defogger Relay Connector End View

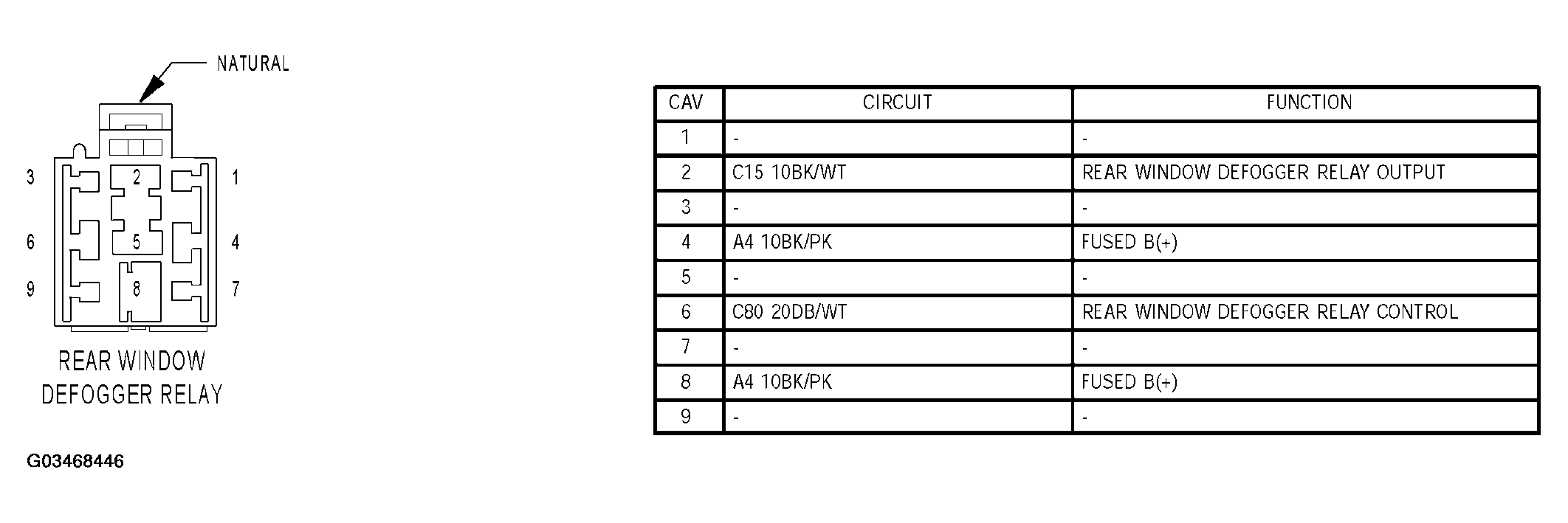

Fig 1: Rear Window Defogger Relay Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
