Airbag System
Airbag System

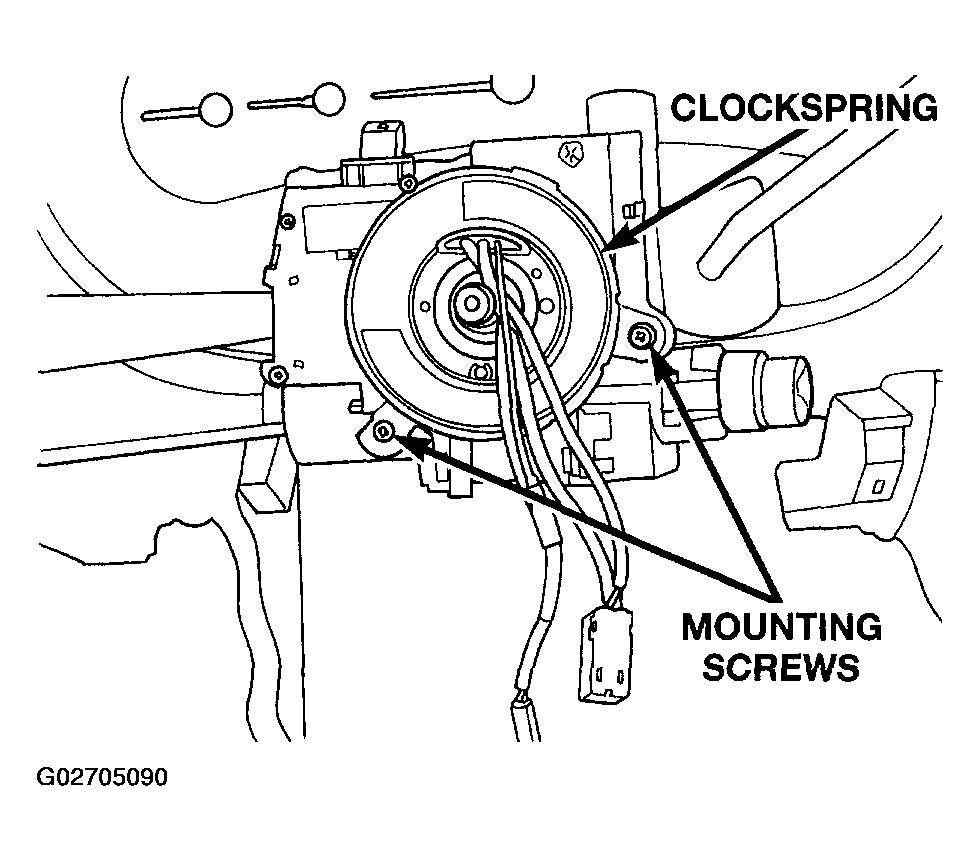

Fig 1: Identifying Airbag System Component Locations (1 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.

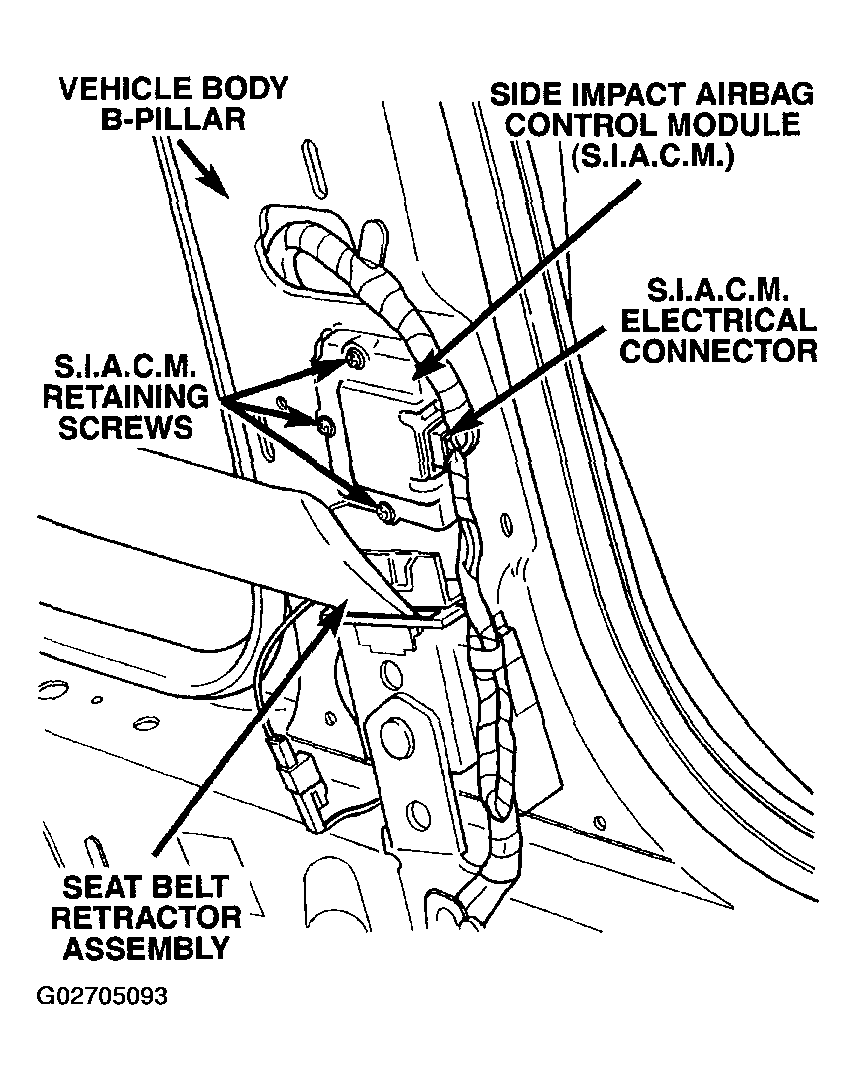

Fig 2: Identifying Airbag System Component Locations (2 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.

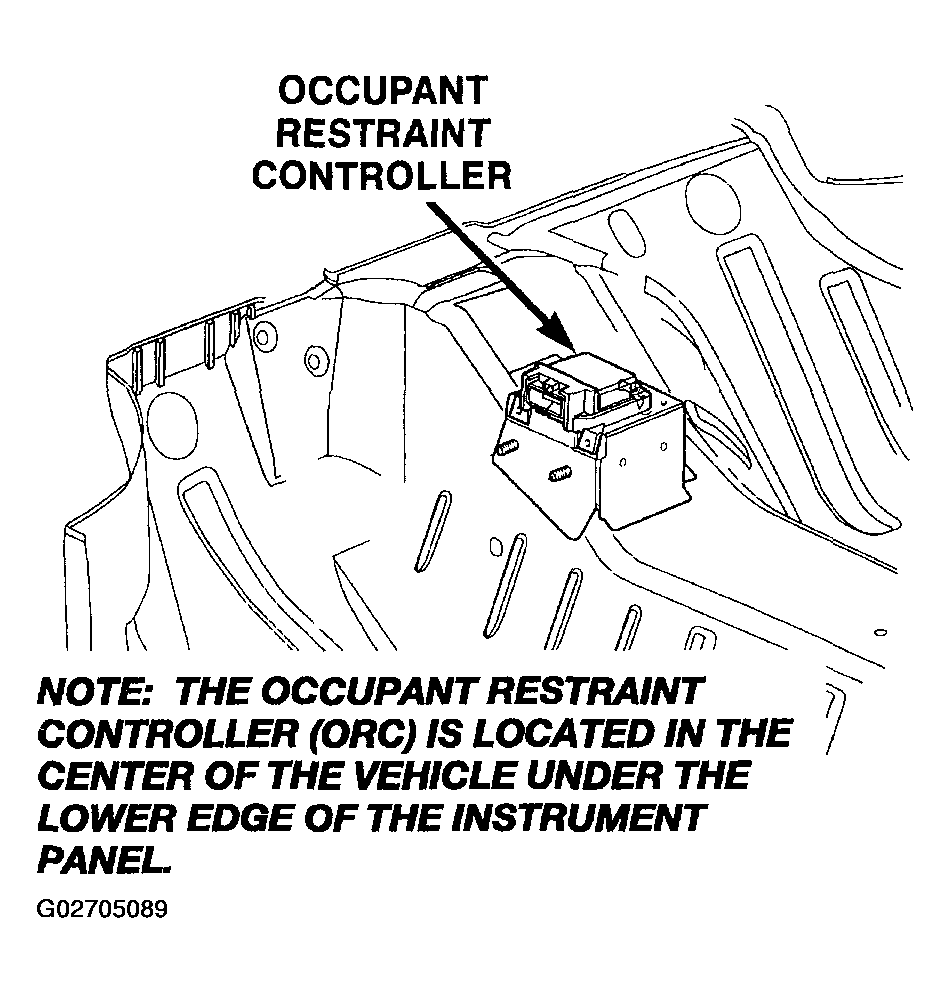

Fig 3: Identifying Airbag System Component Locations (3 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.

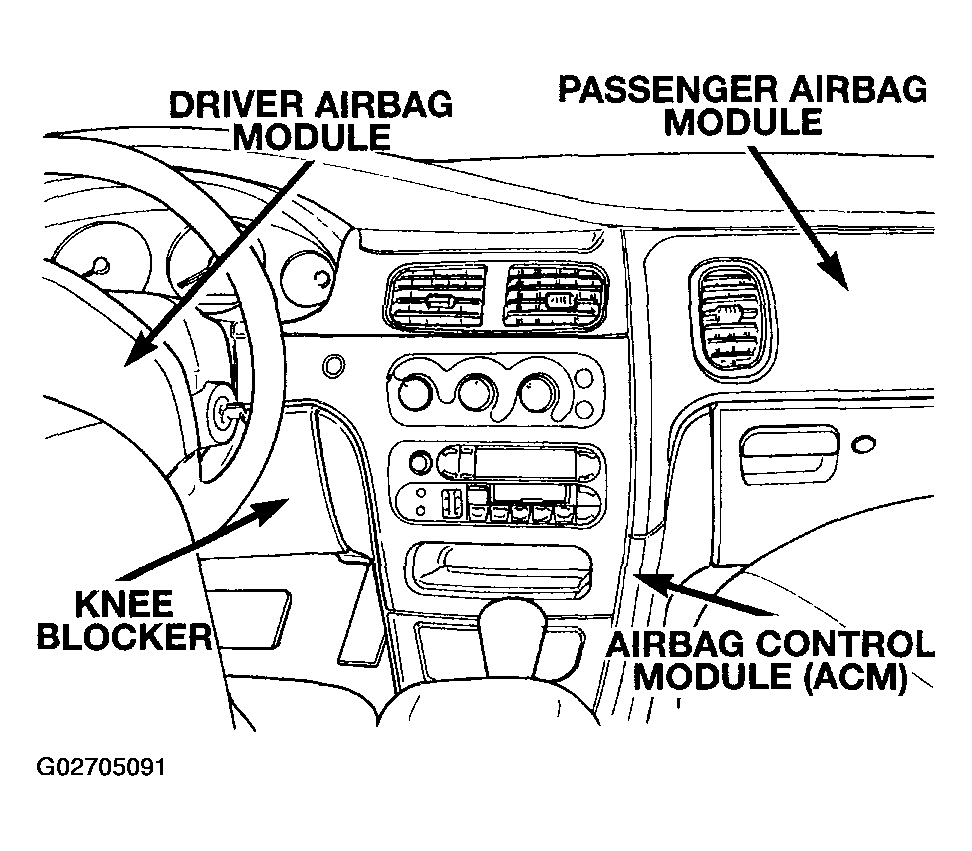

Fig 4: Identifying Airbag System Component Locations (4 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.

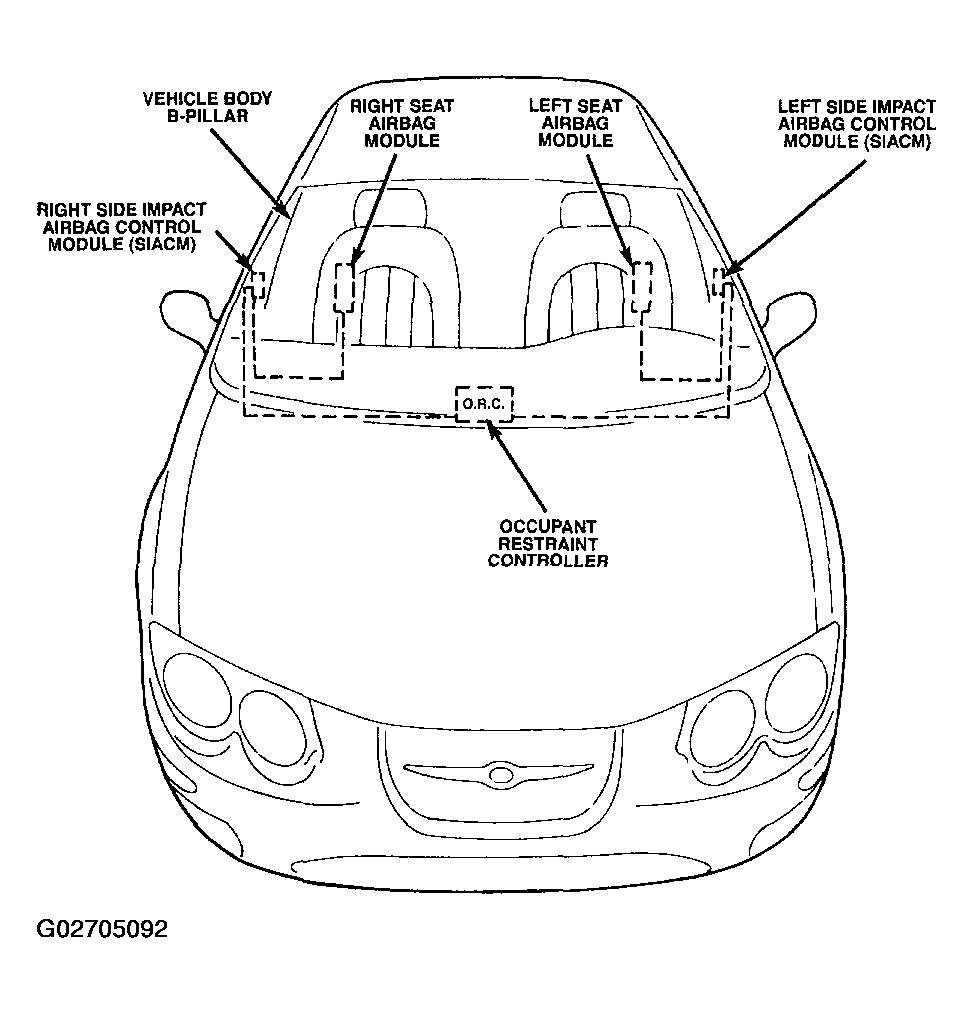

Fig 5: Identifying Airbag System Component Locations (5 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
