Audio System - Premium 2 Infinity II: Notes

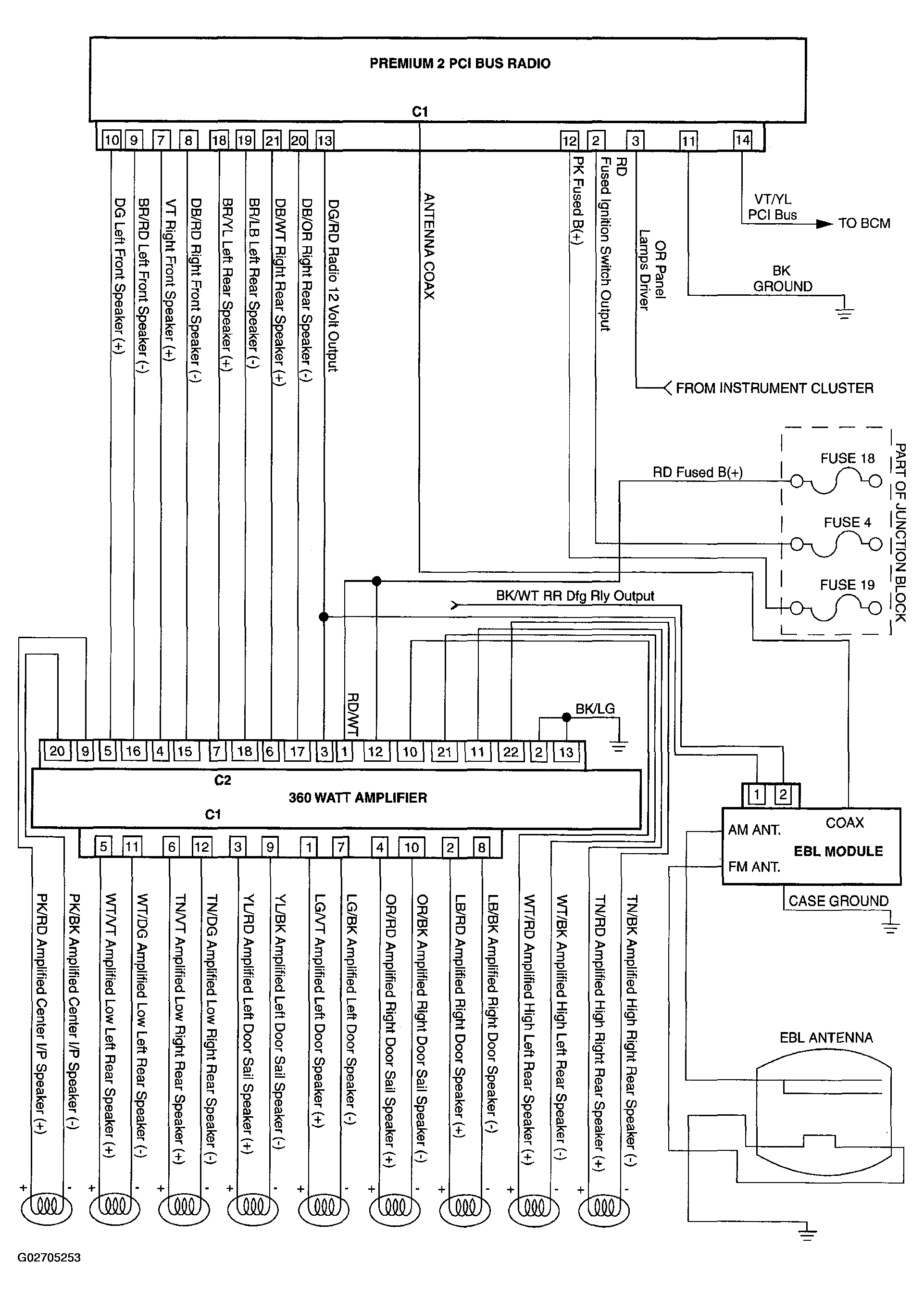

Fig 1: Schematic Diagrams - Audio System - Premium 2 Infinity II
G02705253Courtesy of DAIMLERCHRYSLER CORP.
