Schematic Diagram
›
Climate Control - Automatic Temperature Control
Climate Control - Automatic Temperature Control

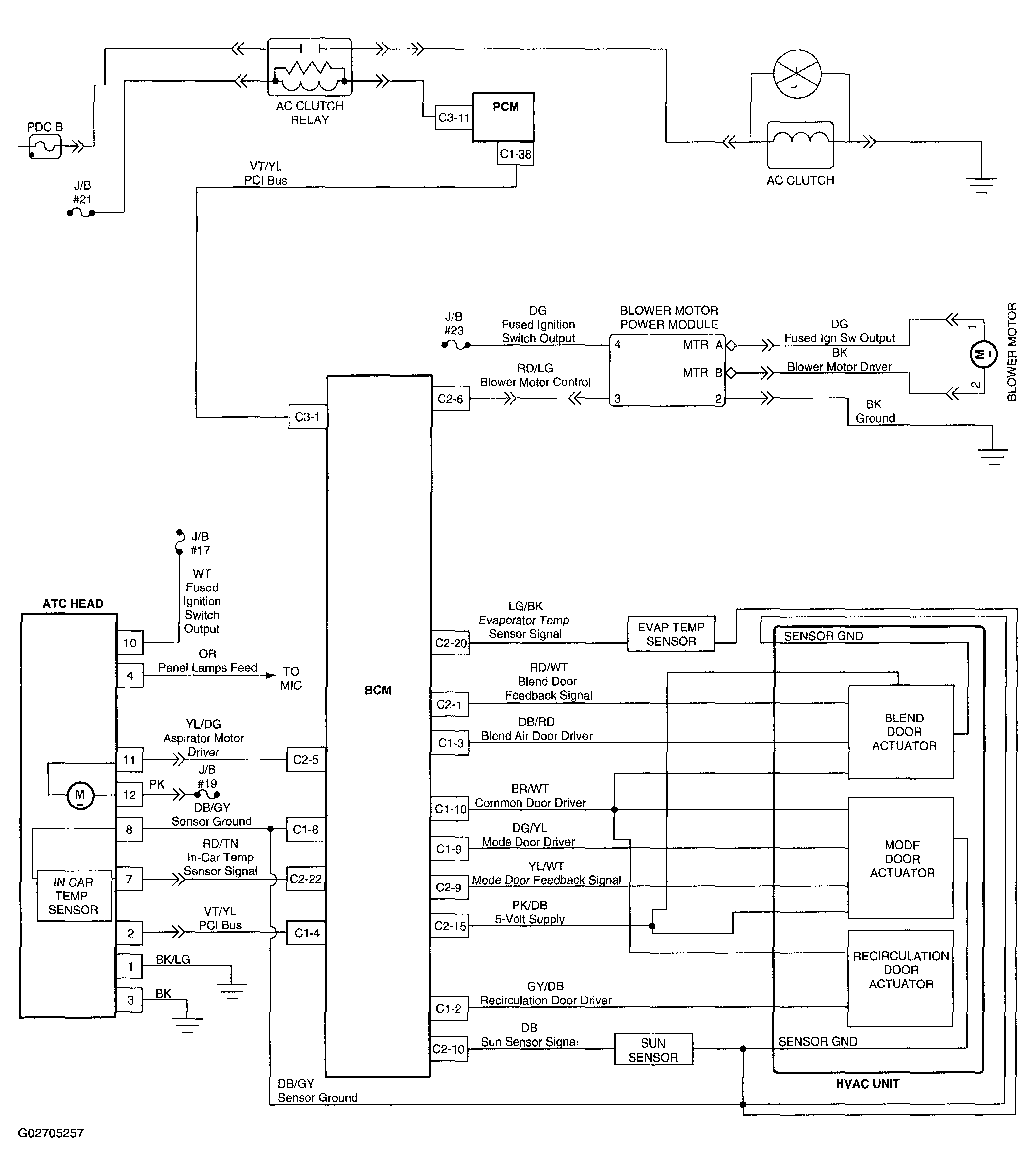

Fig 1: Schematic Diagrams - Climate Control - Automatic Temperature Control
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
