Schematic Diagram
›
Climate Control - Manual Temperature Control
Climate Control - Manual Temperature Control

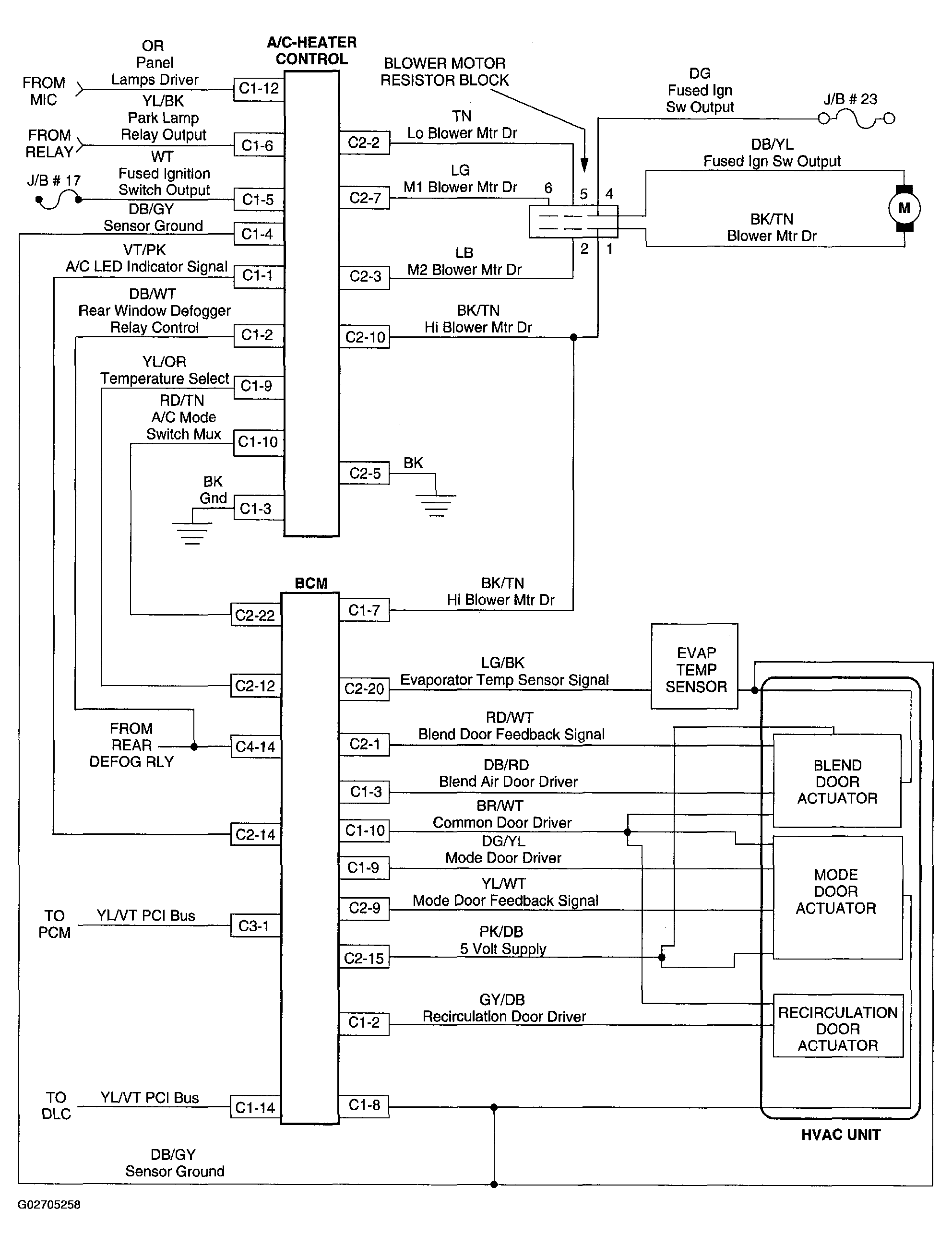

Fig 1: Schematic Diagrams - Climate Control - Manual Temperature Control
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
