Interior Lighting

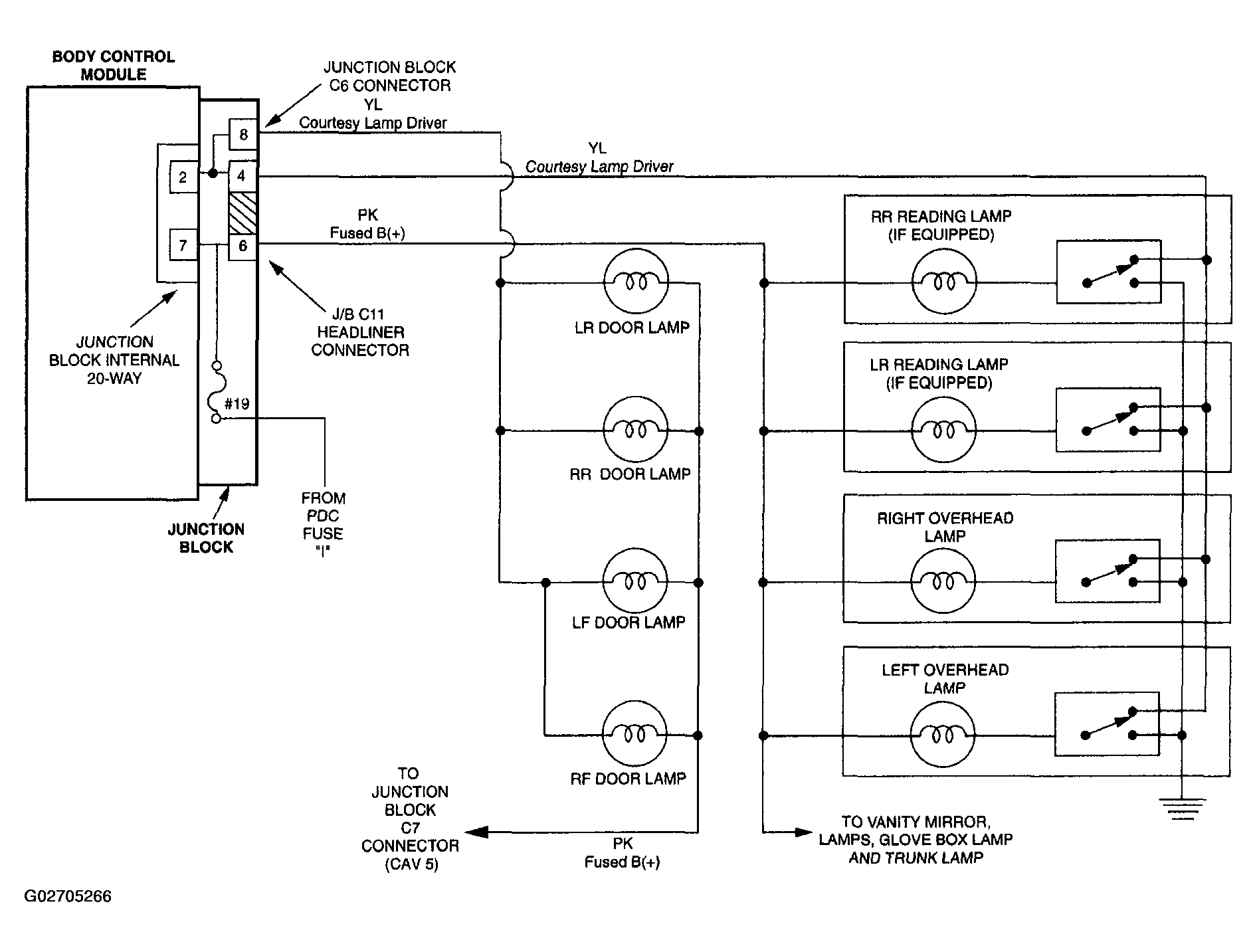

Fig 1: Schematic Diagrams - Interior Lighting (1 Of 2)
G02705266Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Schematic Diagrams - Interior Lighting (2 Of 2)
G02705267Courtesy of DAIMLERCHRYSLER CORP.
