Schematic Diagram
›
Memory System
Memory System

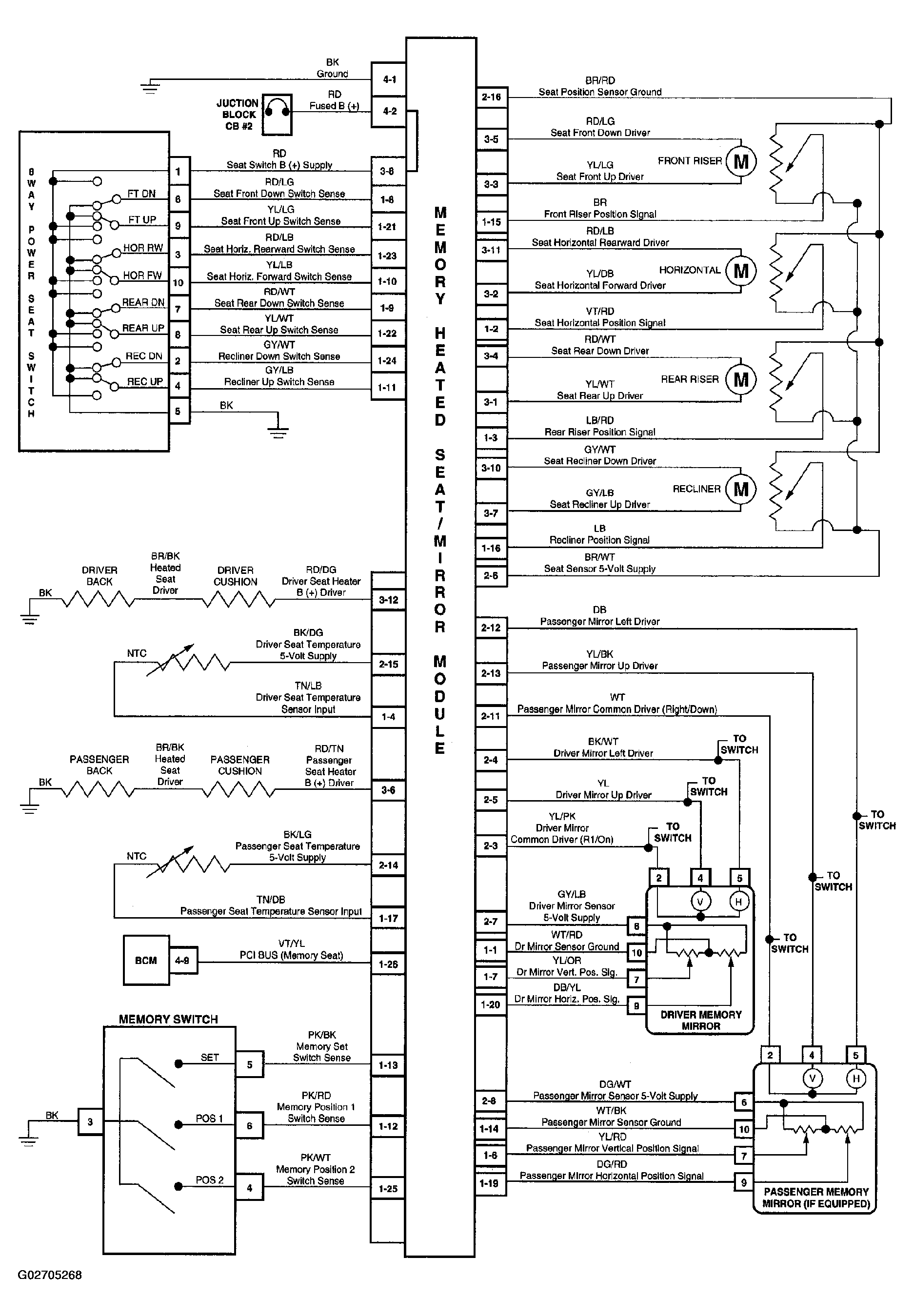

Fig 1: Schematic Diagrams - Memory System
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
