Oil Pump: Assembly

Assemble oil pump as shown in Fig 1.
Install and torque reaction shaft support-to-oil pump housing bolts to 28 N.m (20 ft. lbs.) torque.

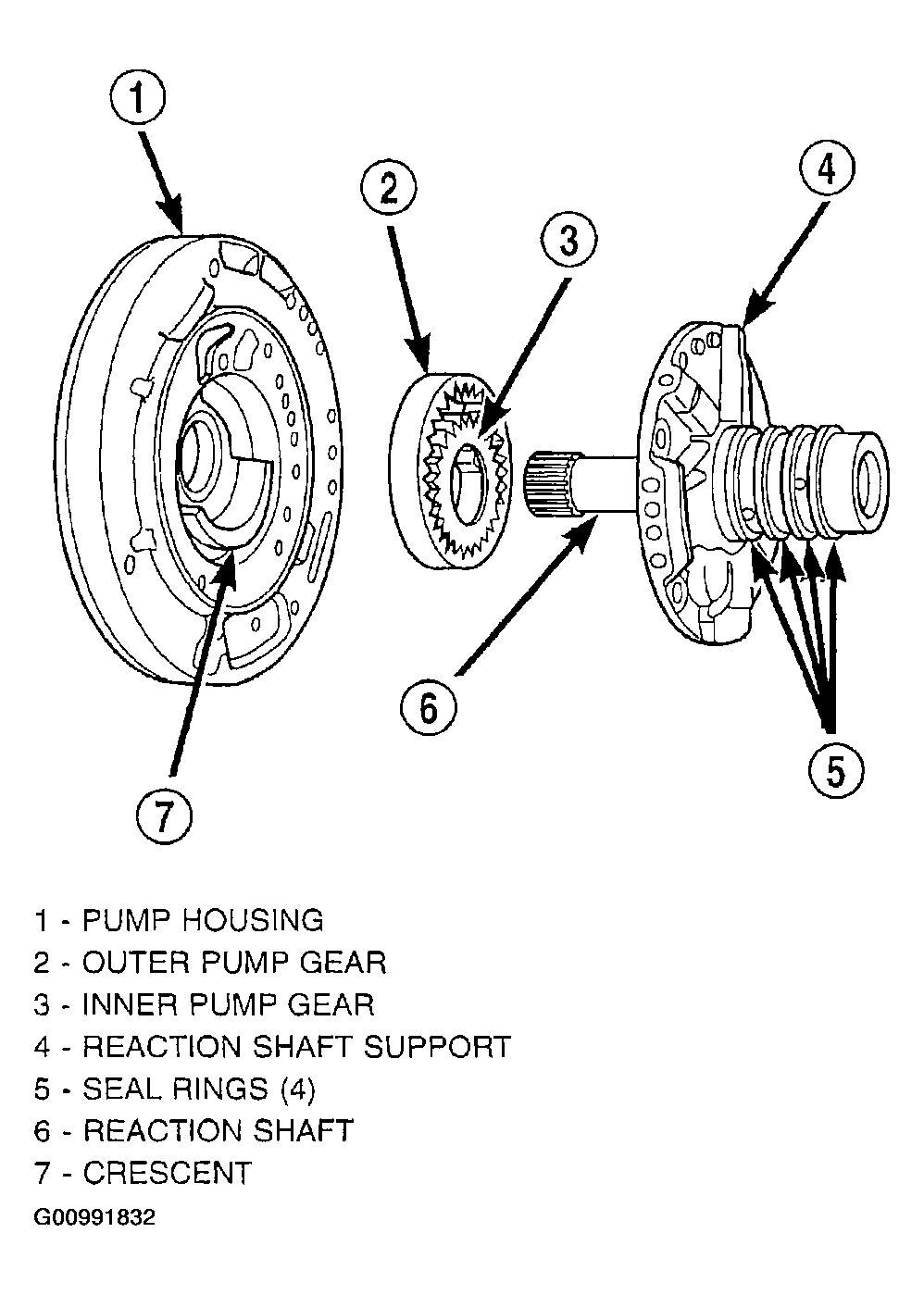

Fig 1: Exploded View Of Oil Pump Assembly
Courtesy of DAIMLERCHRYSLER CORP.
